Benchtop Spectrum Analyzers

Benchtop spectrum analyzers are laboratory-grade instruments designed for high-performance frequency domain analysis in fixed or semi-fixed environments. Compared to handheld counterparts, benchtop analyzers offer superior dynamic range, lower phase noise, wider frequency coverage, and more advanced measurement capabilities — making them the preferred choice for R&D, product development, and rigorous compliance testing. Many benchtop models function as full signal analyzers, supporting vector signal analysis, real-time spectrum monitoring, and demodulation of complex digital modulation formats including OFDM, QAM, and spread-spectrum schemes.

Dynamic signal analyzers, a specialized subset of benchtop spectrum analyzers, are optimized for low-frequency measurements including vibration, acoustic, and structural analysis. These instruments are widely used in mechanical engineering, automotive NVH testing, and industrial applications where precision FFT analysis at audio and sub-audio frequencies is required. USB-connected dynamic signal analyzer modules offer a cost-effective alternative for laboratory and educational environments.

Typical Applications

RF and microwave component characterization in electronics R&D and product development laboratories
EMC pre-compliance and compliance testing for radiated and conducted emissions measurement per CISPR and FCC standards
Phase noise and spurious signal measurement for oscillators, frequency synthesizers, and RF modules
Vibration and acoustic analysis using dynamic signal analyzers in mechanical and structural engineering
Modulation quality testing (EVM, ACPR, OBW) for cellular, satellite, and wireless communication system validation
Production-line RF testing in electronics manufacturing for transmitter and receiver verification

Popular Brands

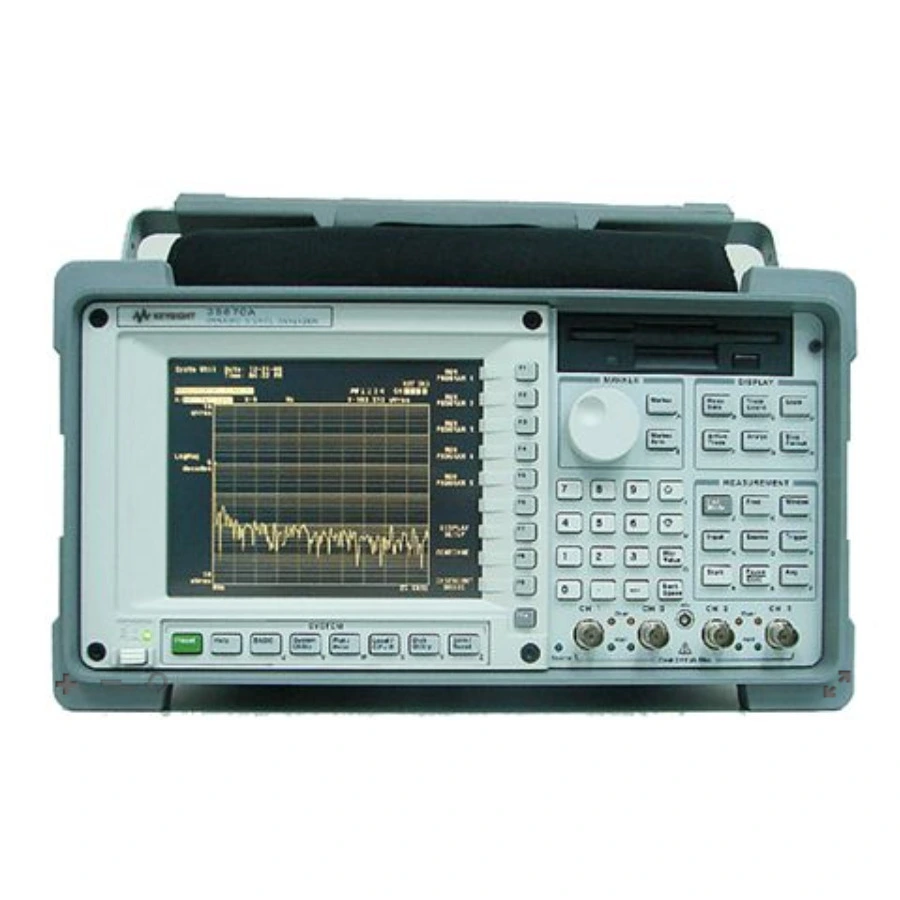

Keysight Technologies leads the benchtop market with the MXA (N9020B), EXA (N9010B), and PXA (N9030B) signal analyzers covering ranges up to 50 GHz and beyond, as well as the 35670A dynamic signal analyzer for audio-frequency FFT analysis. Rohde & Schwarz offers the FSW and FSV series renowned for low phase noise and wide real-time analysis bandwidth. Digilent provides USB-based dynamic signal analyzer modules such as the DT9837 series, widely used in academic and industrial vibration testing.
