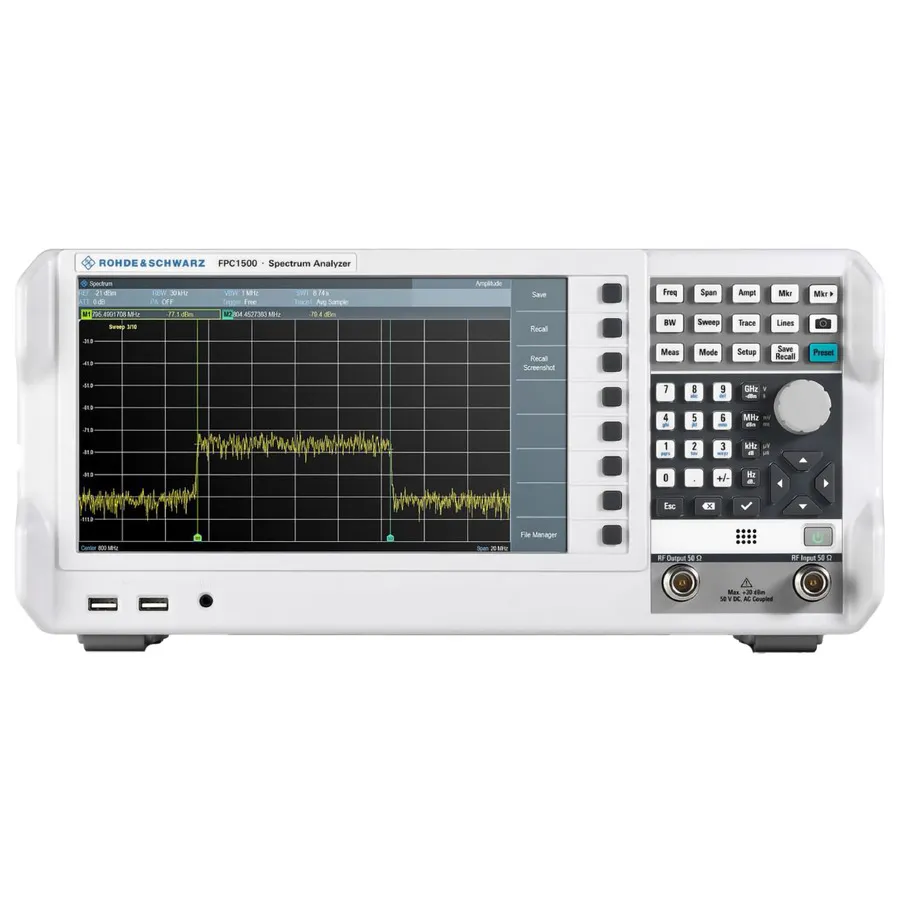

Rohde & Schwarz FPC-COM2 Spectrum Analyzer Bundle
Request a quote
Rohde & Schwarz FPC-COM2 spectrum analyzer bundle with 5 kHz to 3 GHz coverage, integrated preamplifier, frequency upgrades, and advanced measurement options.
Product details
| Model | FPC-COM2 |
| Manufacturer | Rohde & Schwarz |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FPC-COM2 is a premium spectrum analyzer bundle delivering outstanding performance at an affordable price. Engineered in Germany and designed to the same quality standards as high-end instruments, this complete system provides investment protection and versatile measurement capabilities from 5 kHz to 3 GHz.
Key Features
- Frequency range from 5 kHz to 3 GHz (with included upgrades)
- 10.1" WXGA (1366 × 768) display — largest and highest resolution in class
- Tracking generator and independent CW signal generator
- Built-in VSWR bridge
- One-port vector network analyzer with Smith chart display
- Full modulation analysis capabilities
- Remote control and Wi-Fi connectivity
Bundle Includes
- FPC1500 spectrum analyzer base unit
- FPC-B2 frequency upgrade (1 GHz to 2 GHz)
- FPC-B3 frequency upgrade (2 GHz to 3 GHz)
- FPC-B22 preamplifier
- FPC-K7 modulation analysis (AM, FM, ASK, FSK)
- FPC-K42 vector network analysis
- FPC-K43 receiver mode
- FPC-K55 advanced measurements
Applications
- RF and microwave measurements
- Signal generation and analysis
- EMC/EMI testing and compliance
- Research and development
- University laboratories
- Production facilities
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3 GHz |
| Tracking Generator | Yes |
| Noise Floor | -160 dBm |
| Product Type | Benchtop |
| Preamplifier | Yes |
| Series | FPC Series |
| Alternate Product Number | 1328.6660P99 |
| Display Type | 10.1" Multi-Touch |
| Dynamic Range | -20 dBm |
| Includes | FPC1500 Spectrum Analyzer, FPC-B2 Spectrum analyzer frequency upgrade, 1 GHz to 2 GHz, FPC-B3 Spectrum analyzer frequency upgrade, 2 GHz to 3 GHz (requires FPC-B2), FPC-B22 Preamplifier, FPC-K7 Modulation Analysis for AM, FM, ASK, FSK, FPC-K42 Vector Netw |
| Input Connector | 10/100BASE-T, RJ-45, USB Type B plug, version 2.0 |
| Interface | LAN, USB |
| Minimum Frequency | 5 kHz |
| Resolution | 1 Hz to 3 MHz |
| Special Features | VNA, Modulation Analysis |
| Type | Spectrum Analyzer Bundle |
| Warranty | 3 Years |
