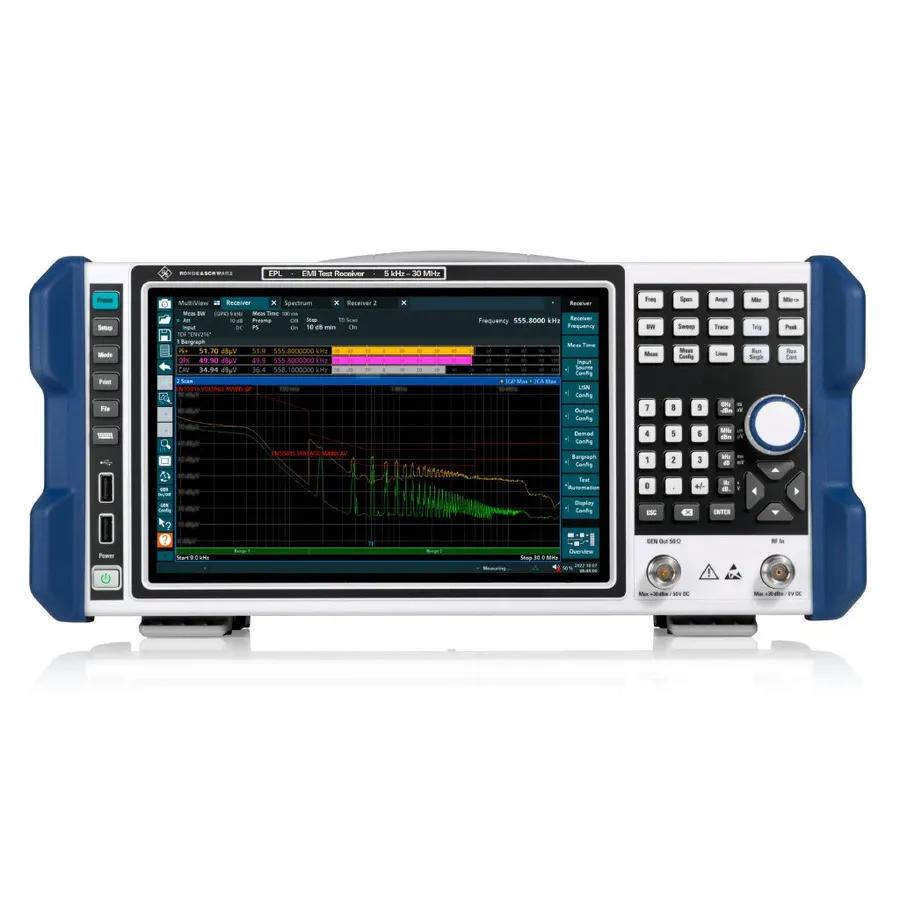

Rohde & Schwarz EPL1000 EMI Test Receiver
Request a quote
Rohde & Schwarz EPL1000 is a CISPR-compliant EMI test receiver (5 kHz–30 MHz) with multiple detectors, preselection, and automation for EMI testing and certification.
Product details
| Model | EPL1000 |
| Manufacturer | Rohde & Schwarz |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz EPL1000 is an EMI test receiver that meets the requirements of CISPR 16-1-1 and supports the decadic 6 dB bandwidths required by MIL-STD-461 and DO-160. It enables development and certification of a wide range of electrical products for regulatory compliance.
Key Features
- EMI detectors: peak, quasi-peak, CISPR-average, RMS-average
- EMI bandwidth (6 dB): 200 Hz, 9 kHz, 120 kHz, 1 MHz (CISPR 16-1-1)
- Preselection with filters for CISPR bands A and B for increased dynamic range
- Transducer factor support with library for Rohde & Schwarz accessories
- Signal level adaptation: pulse-protected input, attenuation up to 55 dB in 1 dB steps, 20 dB gain preamplifier
- Spectrogram function and IF analysis for detailed signal examination
- Built-in tracking generator option for transducer factor recording
- Fast time domain scan for complete CISPR band inspection
- Automation for simplified measurements and reproducible test sequences
Applications
- Conducted voltage and current measurements
- Precompliance and certification testing
- Development and design validation for regulatory standards (IEC, EN, CISPR, FCC)
Specifications
| Frequency Range | 15.0 - 30.0 GHz |
| Maximum Frequency | 30 GHz |
| Noise Floor | +30 dBm |
| Product Type | Benchtop |
| Series | EPL Series |
| Alternate Product Number | 1350.4444.10 |
| Display Type | 10.1" LCD TFT Color |
| Dynamic Range | 115 dB |
| Minimum Frequency | 5 kHz |
| Resolution | 100 kHz to 10 MHz |
