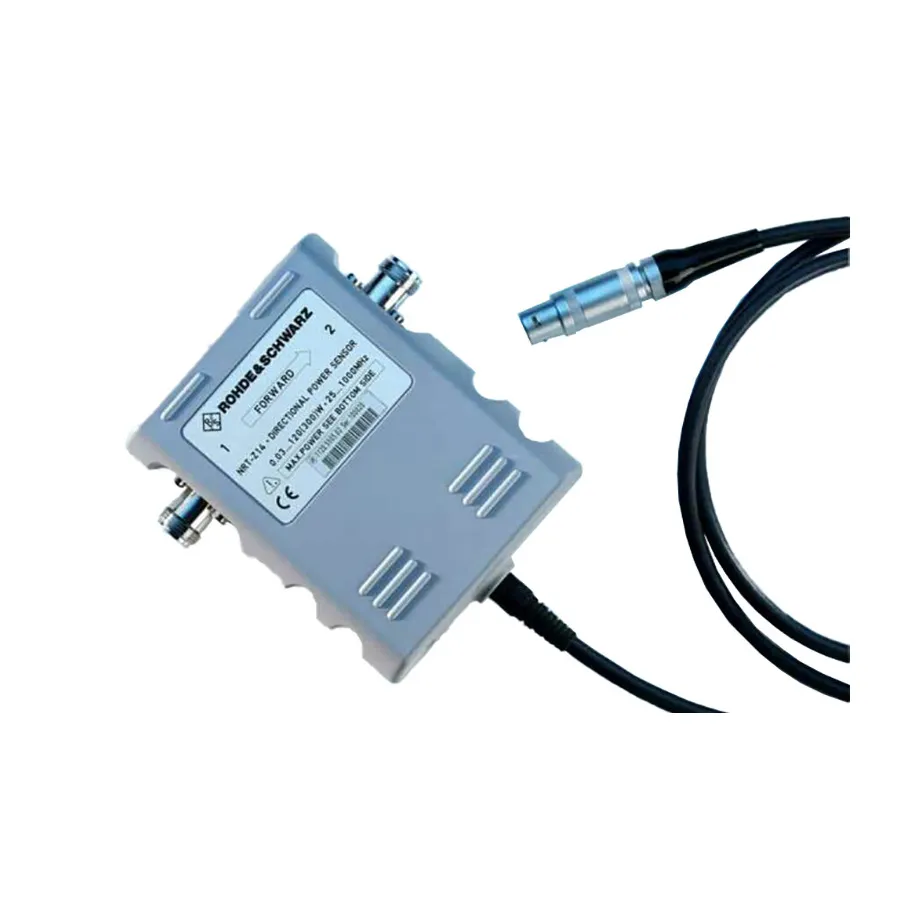

Rohde & Schwarz NRT-Z14 Directional Power Sensor
Request a quote
Rohde & Schwarz NRT-Z14 is a directional power sensor for 25 MHz to 1 GHz with 6 mW to 120 W measurement range, featuring PEP measurement and low insertion loss.
Product details
| Model | NRT-Z14 |
| Manufacturer | Rohde & Schwarz |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NRT-Z14 is a directional power sensor designed for RF and broadcast applications across the 25 MHz to 1 GHz frequency range. It measures forward and reflected power, average power, peak envelope power (PEP), and crest factor with high accuracy and low insertion loss.
Key Features
- Frequency range: 25 MHz to 1 GHz
- Measurement range (average): 6 mW to 120 W; (peak): 0.4 to 300 W
- Low insertion loss
- Peak envelope power (PEP) and crest factor measurement
- Average burst power measurement
- Complementary cumulative distribution function (CCDF) analysis
- Direct power monitoring on PC via USB
Applications
- Traditional analog radio and broadcast frequency bands
- Transmitter monitoring and testing
- RF generator and antenna testing
Specifications
| Type | Directional Power Sensor |
| Series | NRT-ZXX Series |
| Alternate Product Number | 1444.0006.02 |
| Series Compatibility | NRT Series |
