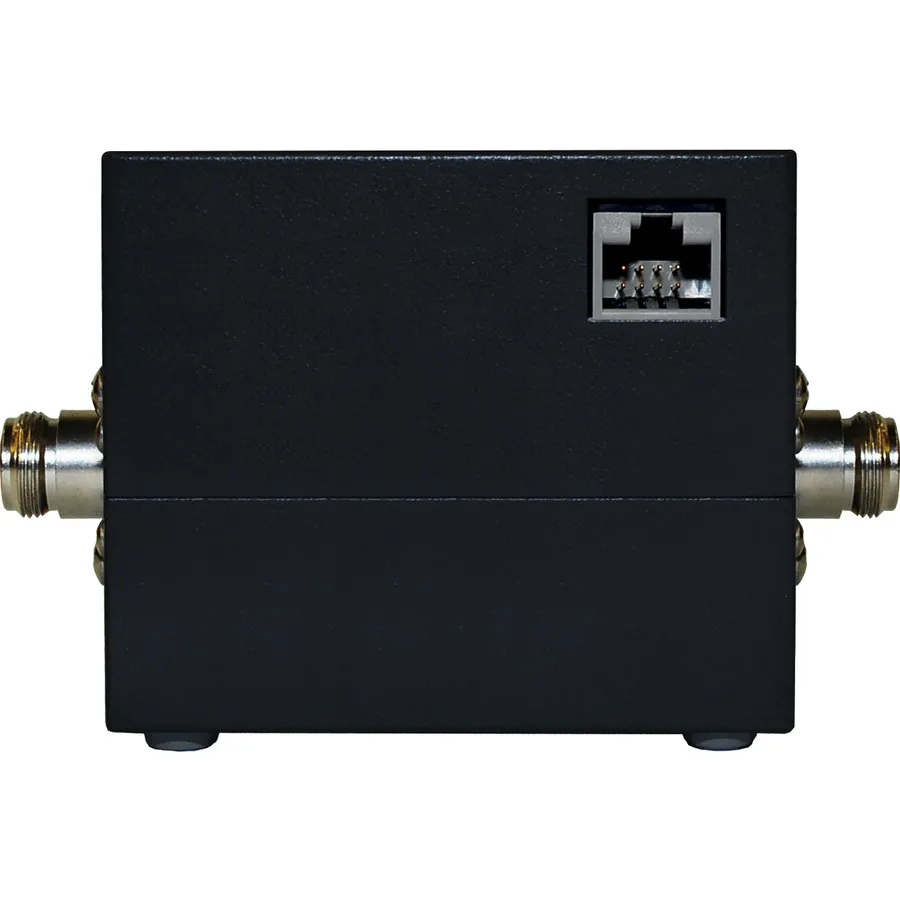

Bird 4023A3G Power Sensor
Request a quote
Bird 4023A3G power sensor covers 800 MHz to 3 GHz with ±3% full-scale accuracy and supports 300 mW to 200 W power measurement.
Product details
| Model | 4023A3G |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 4023A3G is a directional RF power sensor from the Bird 4020 series, designed for accurate forward and reflected power measurement. It provides low insertion loss and full-scale accuracy of ±3% for demanding RF applications requiring precise power monitoring.
Key Features
- Frequency Range: 800 MHz to 3 GHz
- Power Range: 300 mW to 200 W
- Low Insertion Loss
- Full-Scale Accuracy: ±3%
- Direct plug-in operation with Bird 4421A Multifunction Power Meter
Applications
- Forward and reflected power measurement
- RF system monitoring and maintenance
- Accurate power measurement in high-frequency applications
Compatible Equipment
- Bird 4421A Multifunction Power Meters
- SCC7 Calibration Cart
- MSCC7 Calibration Cart
Specifications
| Connector Type | N (f) |
| Frequency Range | 800 MHz to 3 GHz |
| Series | 4020 Series |
| Impedance | 50 Ohms |
