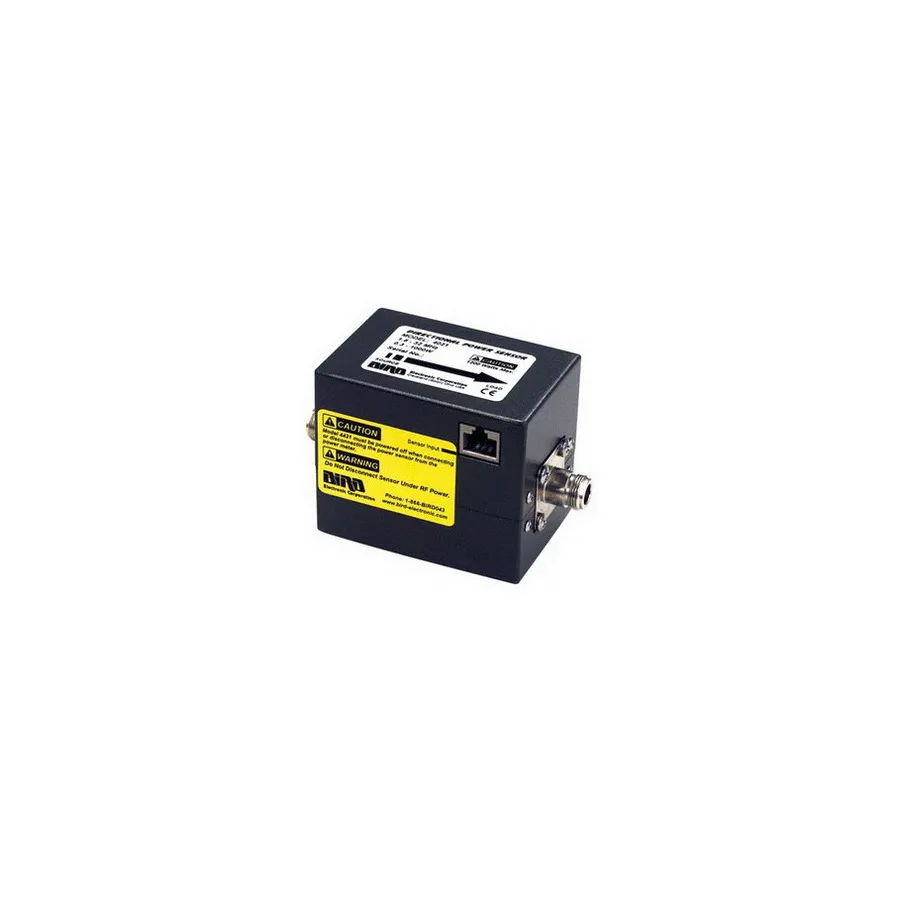

Bird 4022 Directional Power Sensor
Request a quote
Bird 4022 directional RF power sensor covers 25 MHz to 1 GHz with ±3% full-scale accuracy and supports 300 mW to 1 kW power measurement.
Product details
| Model | 4022 |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 4022 is a cost-effective directional RF power sensor designed for maintaining critical RF systems. It provides full-scale accuracy at ±3% for applications requiring precise forward and reflected power measurement, with direct plug-in operation compatible with the Bird 4421 Multifunction Power Meter.
Key Features
- Frequency Range: 25 MHz – 1 GHz
- Power Input: 300 mW to 1 kW (1.2 kW max)
- Impedance: 50 Ω
- VSWR: 1.05:1 (25-512 MHz), 1.10:1 (512 MHz – 1 GHz)
- Insertion Loss: 0.05 dB (25-512 MHz), 0.13 dB (512 MHz – 1 GHz)
- Directivity: 30 dB
- Full-Scale Accuracy: ±3%
Applications
- Forward and reflected power measurement in RF systems
- System maintenance and monitoring
- Compatible with Bird 4421 Multifunction Power Meter
