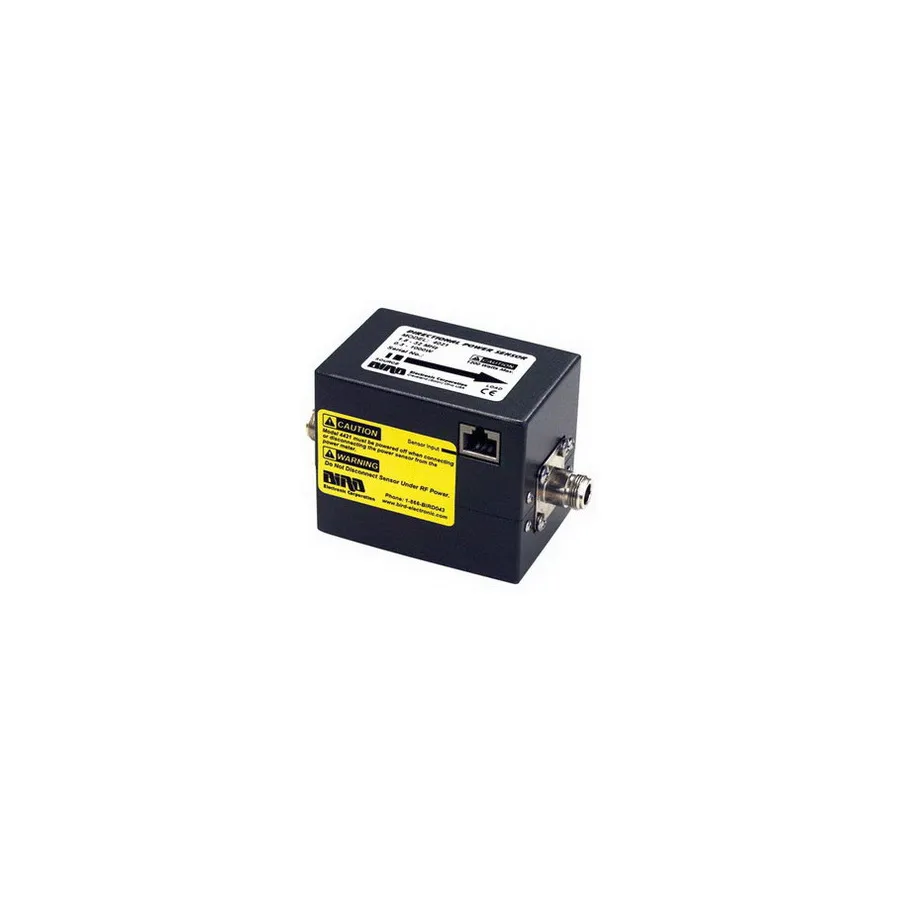

Bird 4025 Directional Power Sensor
Request a quote
Bird 4025 directional power sensor covers 100 kHz to 2.5 MHz with ±3% full-scale accuracy and handles 3 W to 10 kW power input.
Product details
| Model | 4025 |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 4025 is a cost-effective directional RF power sensor for maintaining critical RF systems. It provides full-scale accuracy at ±3% for applications requiring precise forward and reflected power measurement, with direct plug-in operation compatible with the Bird 4421 Multifunction Power Meter.
Key Features
- Frequency Range: 100 kHz – 2.5 MHz
- Power Input: 3 W to 10 kW
- Impedance: 50 Ω
- VSWR: 1.05:1
- Insertion Loss: 0.05 dB
- Full-Scale Accuracy: ±3%
Applications
- Forward and reflected power measurement in RF systems
- System maintenance and monitoring
- Compatible with Bird 4421 Multifunction Power Meter
