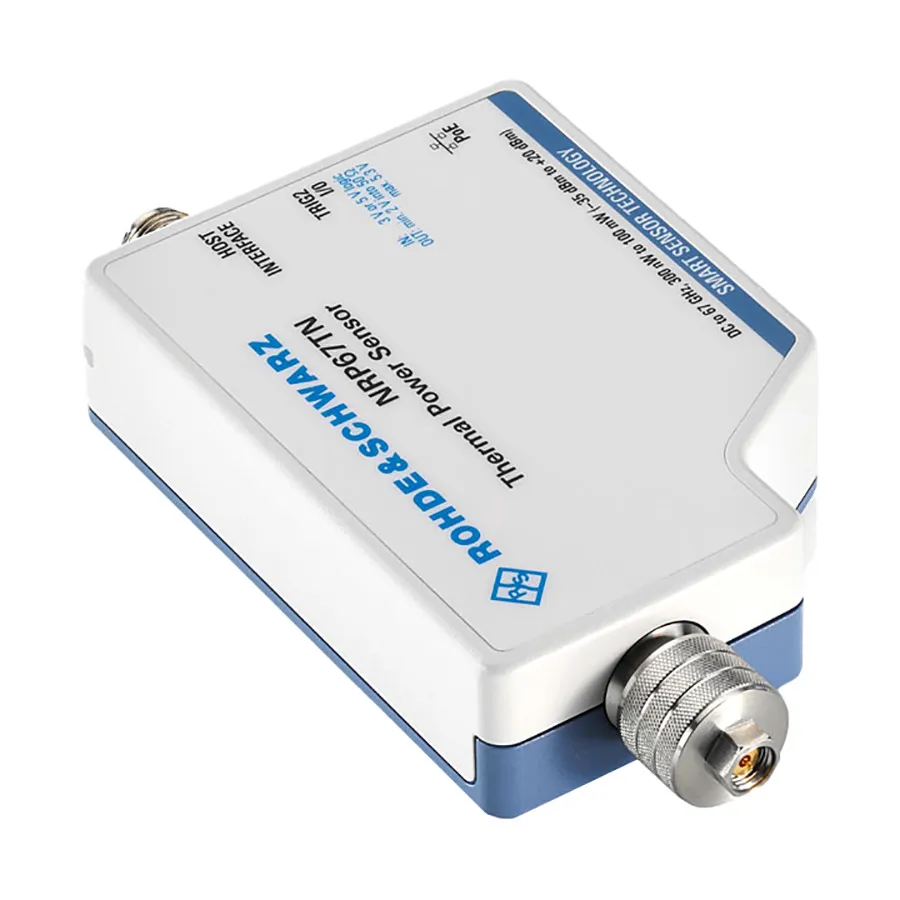

Rohde & Schwarz NRP67TN Thermal Power Sensor
Request a quote
Rohde & Schwarz NRP67TN thermal power sensor extends to 67 GHz with 0.16% linearity, USB and LAN remote operation, and > 500 measurements/s for precision calibration labs.
Product details
| Model | NRP67TN |
| Manufacturer | Rohde & Schwarz |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NRP67TN is an extended-frequency thermal power sensor with USB and LAN network capabilities for remote operation. Covering DC to 67 GHz with a power measurement range of 300 nW to 100 mW, this sensor delivers exceptional accuracy and measurement speed for demanding calibration and production applications.
Key Features
- Extended frequency range: DC to 67 GHz
- Power measurement range: 300 nW to 100 mW
- Dynamic range: -35 dBm to +20 dBm
- USB and LAN connectivity for remote monitoring and control
- Measurement speed: > 500 measurements/s in buffered mode
- Exceptional linearity: 0.007 dB (0.16%) across full range
- Superior impedance matching for high-frequency accuracy
- 1.85 mm connector for optimal high-frequency performance
- Internal calibration verification function
Applications
- Remote power measurement in calibration laboratories
- Production testing of millimeter-wave RF components
- Research and development of wireless systems
- Field service and installation applications
Specifications
| Frequency Range | DC to 67 GHZ |
| Type | Thermal Power Sensor |
| Series | NRP Series |
| Alternate Product Number | 1424.6209.02 |
