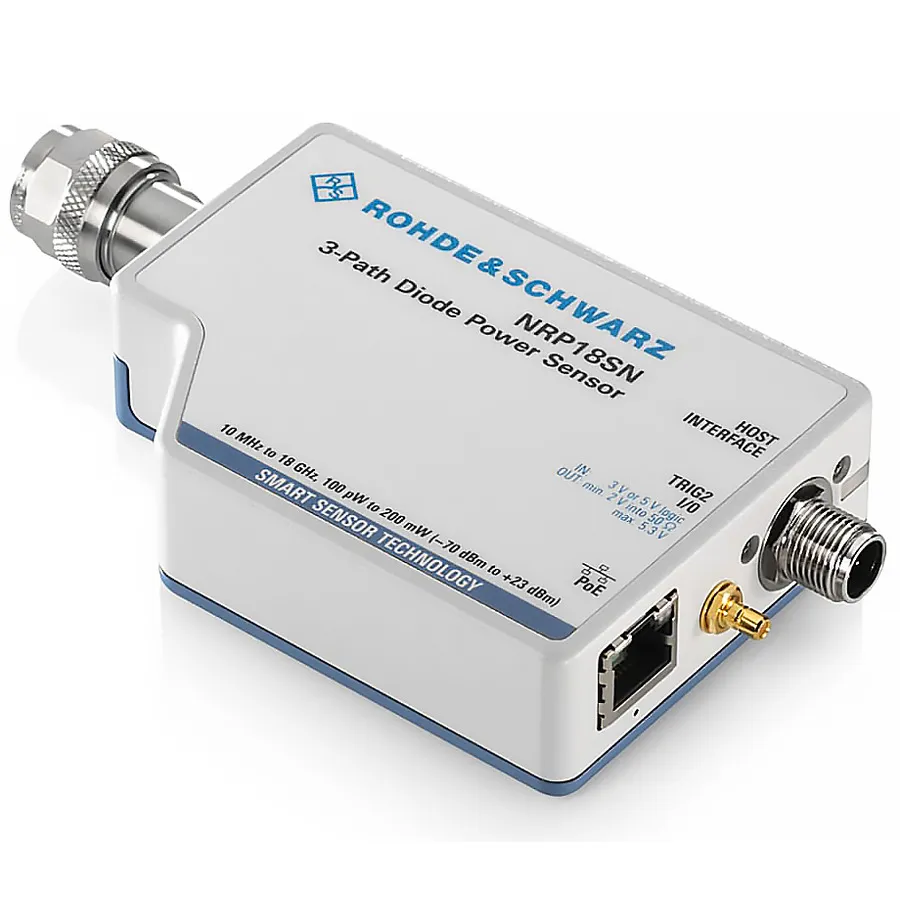

Rohde & Schwarz NRP18SN Diode Power Sensor
Request a quote
Rohde & Schwarz NRP18SN is a three-path diode power sensor covering 10 MHz to 18 GHz with -70 dBm to +23 dBm range, delivering >50,000 readings/s and 93 dB dynamic range.
Product details
| Model | NRP18SN |
| Manufacturer | Rohde & Schwarz |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NRP18SN is a three-path diode power sensor designed for precise RF and microwave power measurements from 10 MHz to 18 GHz. Built with advanced three-path technology, the sensor dramatically reduces measurement noise and provides a dynamic range of 93 dB across its range of -70 dBm to +23 dBm, enabling fast and accurate measurements of both CW and modulated signals.
Key Features
- Frequency range: 10 MHz to 18 GHz
- Level range: -70 dBm to +23 dBm (0 pW to 200 mW)
- Three-path diode technology for low noise and high dynamic range
- Measurement speed: >50,000 readings/s
- Triggered measurements: up to 10,000 per second
- Trigger I/O port directly on sensor
- LAN and USB/USBTMC connectivity for remote control
- Detachable cables with various connector options
- Offset, S-parameter, and Gamma correction capabilities
Applications
- Power amplifier testing and characterization
- Signal generator verification
- Network analyzer power monitoring
- CW and modulated signal measurements
Specifications
| Type | Diode Power Sensor |
| Series | NRP Series |
| Alternate Product Number | 1419.0035.02 |
