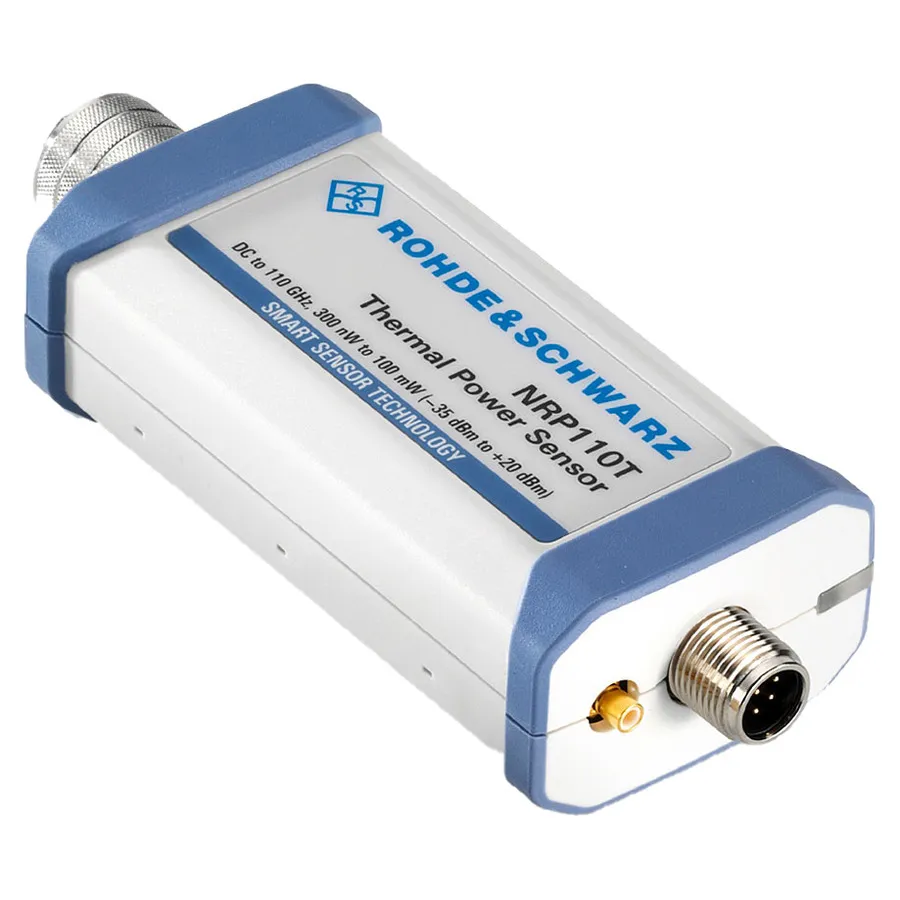

Rohde & Schwarz NRP110T Thermal Power Sensor

Overview

The Rohde & Schwarz NRP110T is a thermal power sensor designed for the most demanding measurement applications requiring the highest accuracy. Thermal sensors tolerate any type of modulation and are particularly suited for complex measurement tasks in reference applications and calibration laboratories. The sophisticated measurement cell design minimizes noise and provides immunity to thermal environmental effects.

Key Features

• Thermal measurement technology for highest accuracy
• Frequency range DC to 110 GHz
• Power measurement range 300 nW to 100 mW
• Level range -35 dBm to +20 dBm
• Linearity 0.007 dB (0.16%) up to 67 GHz and 0.010 dB (0.23%) up to 110 GHz
• Measurement speed three times faster than comparable solutions with triggered measurements
• Over 500 measurements per second in buffered mode
• Excellent impedance matching to minimize reflections
• 1 mm male connector with innovative ball bearing coupling design
• Internal calibration verification function

Applications

• Reference standard applications and calibration laboratories
• Complex modulated signal measurements
• High-accuracy RF and microwave power characterization
