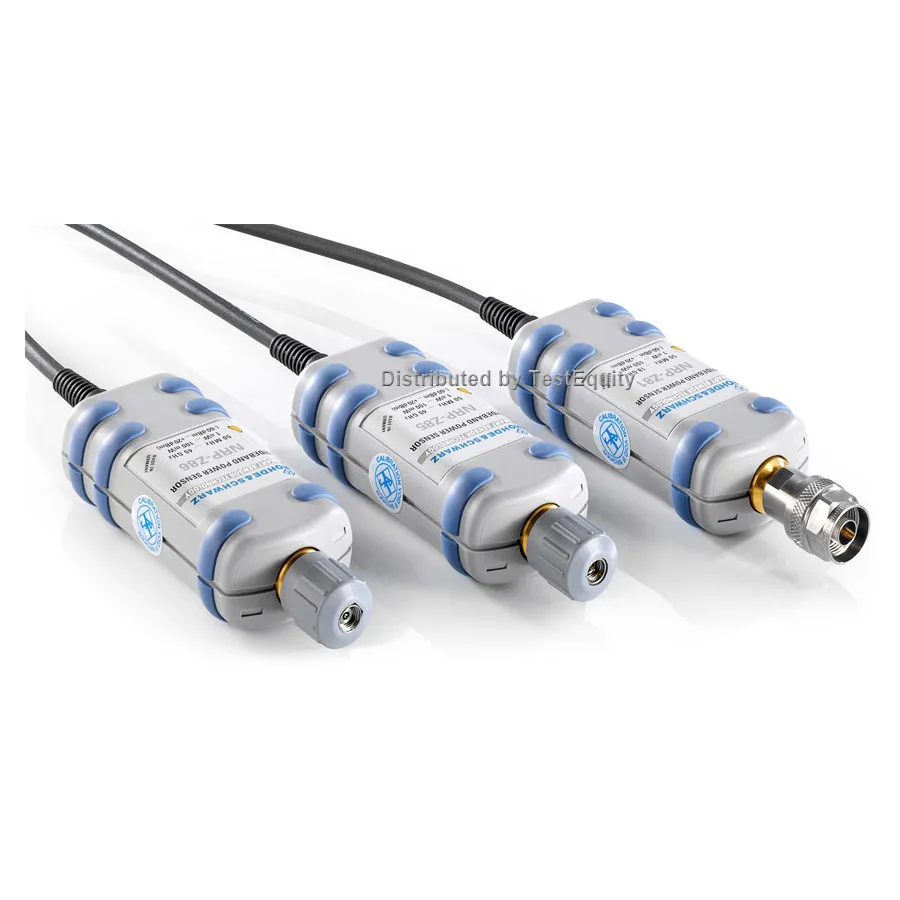

Rohde & Schwarz NRP-Z28 Power Sensor
Request a quote
Rohde & Schwarz NRP-Z28 power sensor with up to 90 dB dynamic range, DC to 67 GHz frequency, and precision average power measurement.
Product details
| Model | NRP-Z28 |
| Manufacturer | Rohde & Schwarz |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NRP-Z28 power sensor is an intelligent standalone instrument featuring smart sensor technology. It delivers precise average power measurements independent of modulation type and bandwidth, with a wide dynamic range and excellent linearity. Compatible with NRVS and NRVD base units, it can be directly connected to a PC via USB.
Key Features
- Dynamic range: up to 90 dB (sensor dependent)
- Level range: -67 dBm to +45 dBm (sensor dependent)
- Frequency range: DC to 67 GHz (sensor dependent)
- Measurement speed: 1500 measurements per second in buffered mode
- Linearity uncertainty: 0.0007 dB
- Flexible measurements on up to 128 time slots per power sensor
- Direct USB connection from sensor to PC
- S parameter correction of components between sensor and test object
- Smart sensor technology for universal operation
- 2-year calibration cycle
Applications
- Laboratory and production power measurement
- Modulation-independent average power measurement
- High-frequency RF and microwave testing
- Component characterization and verification
- Antenna and transmission line measurement
Specifications
| Type | Power Sensor |
| Series | NRP-Zxx Series |
| Alternate Product Number | 1170.8008.02 |
| Series Compatibility | NRP Series |
