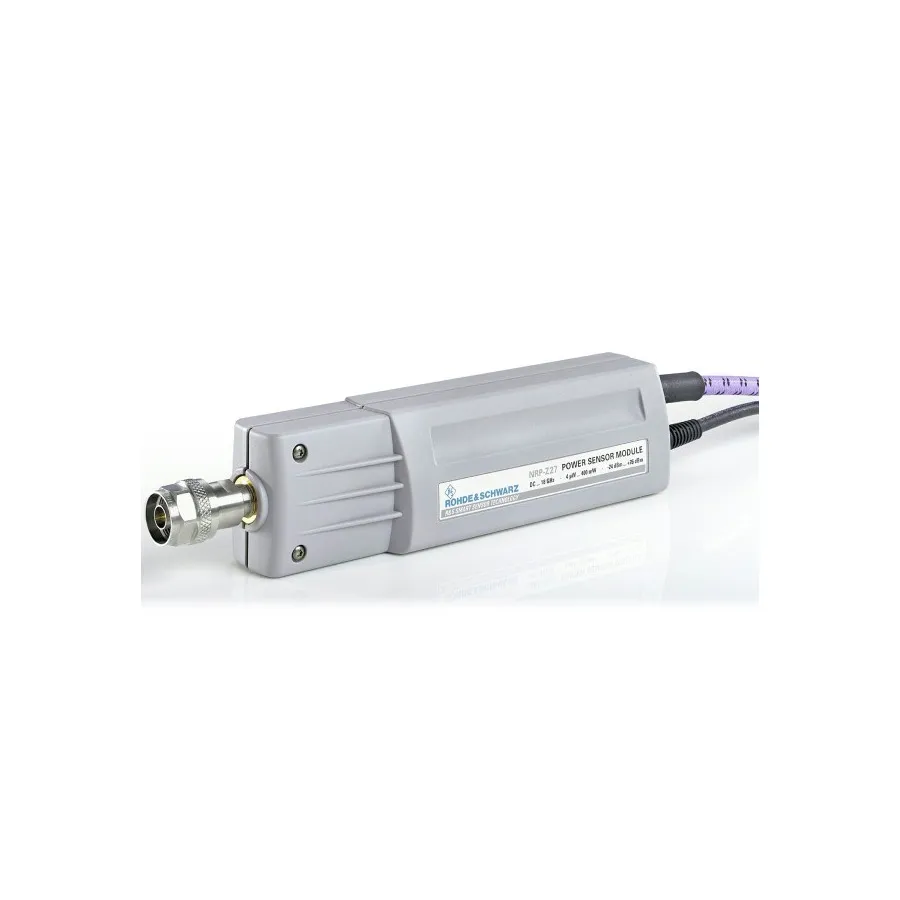

Rohde & Schwarz NRP-Z27 Power Sensor Module
Request a quote
Rohde & Schwarz NRP-Z27 power sensor module for DC to 18 GHz accurate level calibration with FSMR measurement receivers.
Product details
| Model | NRP-Z27 |
| Manufacturer | Rohde & Schwarz |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NRP-Z27 is a power sensor module designed specifically for precision level calibration when used with FSMR measurement receivers. It serves as a highly accurate reference for determining absolute power levels, enabling precise power calibration across the full level range of the measuring receiver.
Key Features
- Power measurement range: 4 µW to 400 mW
- Frequency range: DC to 18 GHz
- Level range: -24 dBm to 26 dBm
- N-type male connector
- Integrated power splitter for simultaneous measurement and transmission
- Thermal power sensor technology
- USB remote control from FSMR, NRX, or Windows PC
- Excellent linearity for precision calibration
Applications
- Signal source level calibration with FSMR receivers
- Absolute power level determination
- Precision power meter reference
- Receiver calibration and verification
Specifications
| Frequency Range | DC to 18 GHz |
| Type | Power Sensor Module |
| Series | NRP-Zxx Series |
| Alternate Product Number | 1169.4102.02 |
| Series Compatibility | NRP Series |
