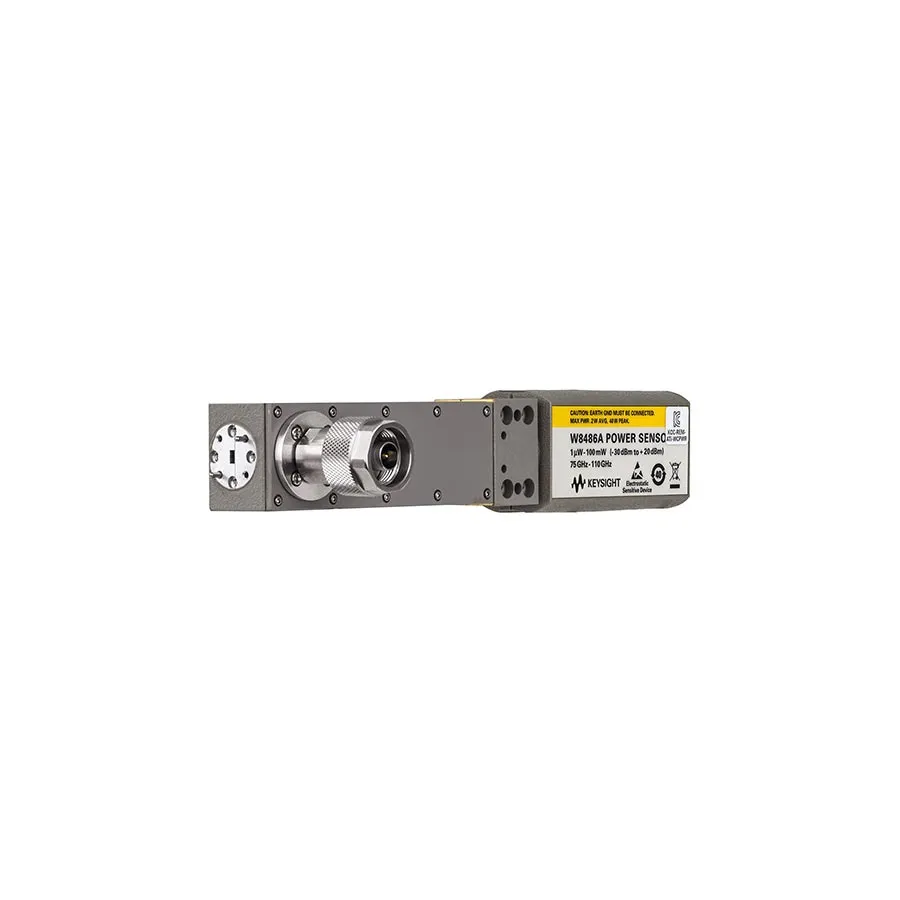

Keysight W8486A Waveguide Power Sensor
Request a quote
Keysight W8486A waveguide power sensor for W-Band (75–110 GHz) measurements with excellent SWR, NIST-traceable calibration, and compatibility with leading power meters.
Product details
| Model | W8486A |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight W8486A is a waveguide power sensor designed for accurate average power measurements in the W-Band frequency range (75–110 GHz). Utilizing proven MBID (Modified Barrier Integrated Diode) technology, it delivers excellent SWR performance and NIST-traceable calibration for demanding millimeter-wave power measurement applications.
Key Features
- Frequency range: 75–110 GHz (W-Band)
- Power range: −30 to +20 dBm
- Excellent SWR of 1.06 (>30 dB return loss) for minimal mismatch uncertainty
- 50 MHz calibration port for easy power meter calibration
- NIST-traceable calibration at millimeter-wave frequencies
- True-average detection via square-law characteristic
- Compatibility with EPM, EPM-P, and P-Series power meters
Applications
- Millimeter-wave power measurements and characterization
- RF and microwave component testing
- High-frequency system validation
Included Accessories
- Hex ball driver
- Waveguide mounting screws
- User's and Service Guides
Specifications
| Series | 8486A Series |
