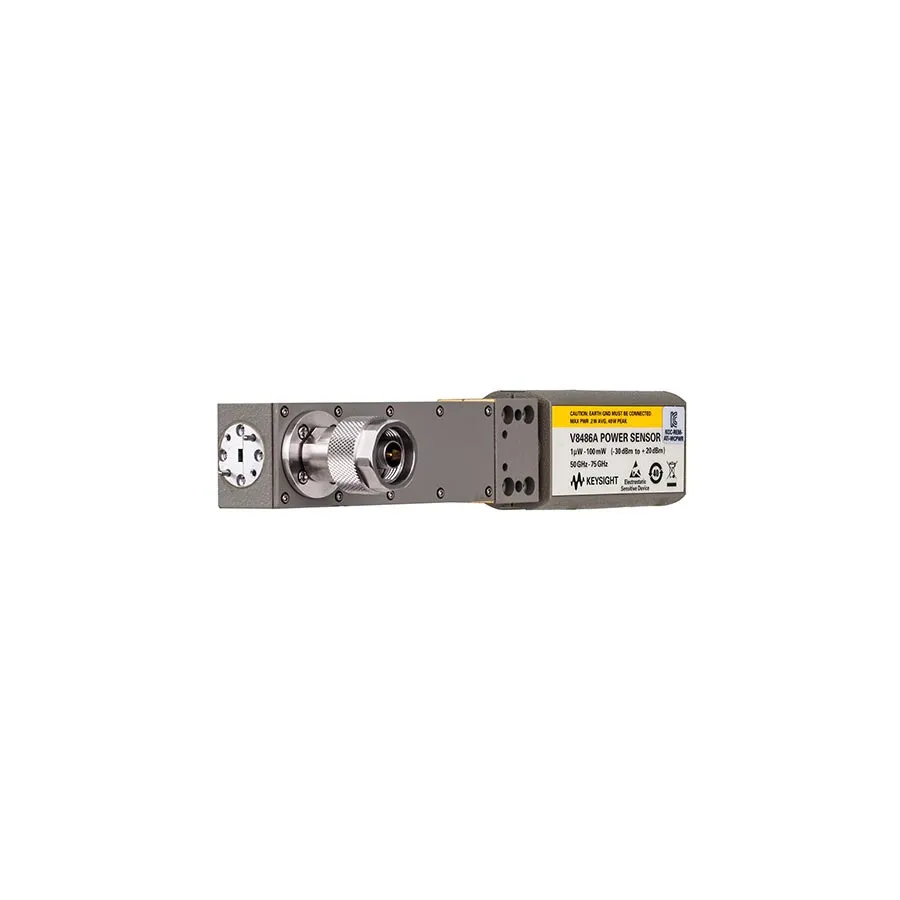

Keysight V8486A/100 Waveguide Power Sensor
Request a quote
Keysight V8486A/100 waveguide power sensor measures RF/microwave power at 50–75 GHz with 1.06 SWR and NIST-traceable 50 MHz calibration for measurement accuracy.
Product details
| Model | V8486A/100 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight V8486A/100 is a waveguide power sensor designed for accurate RF and microwave power measurements in the 50–75 GHz frequency band. It features a measurement range of -30 to +20 dBm and incorporates the proven Modified Barrier Integrated Diode (MBID) technology for true-average detection. The sensor is compatible with Keysight EPM, EPM-P, and P-series power meters, as well as legacy Keysight power measurement systems.
Key Features
- Frequency range: 50 to 75 GHz
- Power range: -30 to +20 dBm
- Excellent SWR of 1.06 (>30 dB return loss) to minimize mismatch uncertainty
- 50 MHz calibration port for easy recalibration and temperature compensation
- NIST-traceable calibration at millimeter-wave frequencies
- Diode power sensing element with square-law characteristic
- Compatible with multiple Keysight power meter platforms
Applications
- RF and microwave power measurements
- Millimeter-wave system testing and validation
- Production and field testing of RF components
- Calibration and traceability verification
Included Accessories
- Hex ball driver
- Waveguide mounting screws
- User's and Service Guides
Specifications
| Series | 8486A Series |
