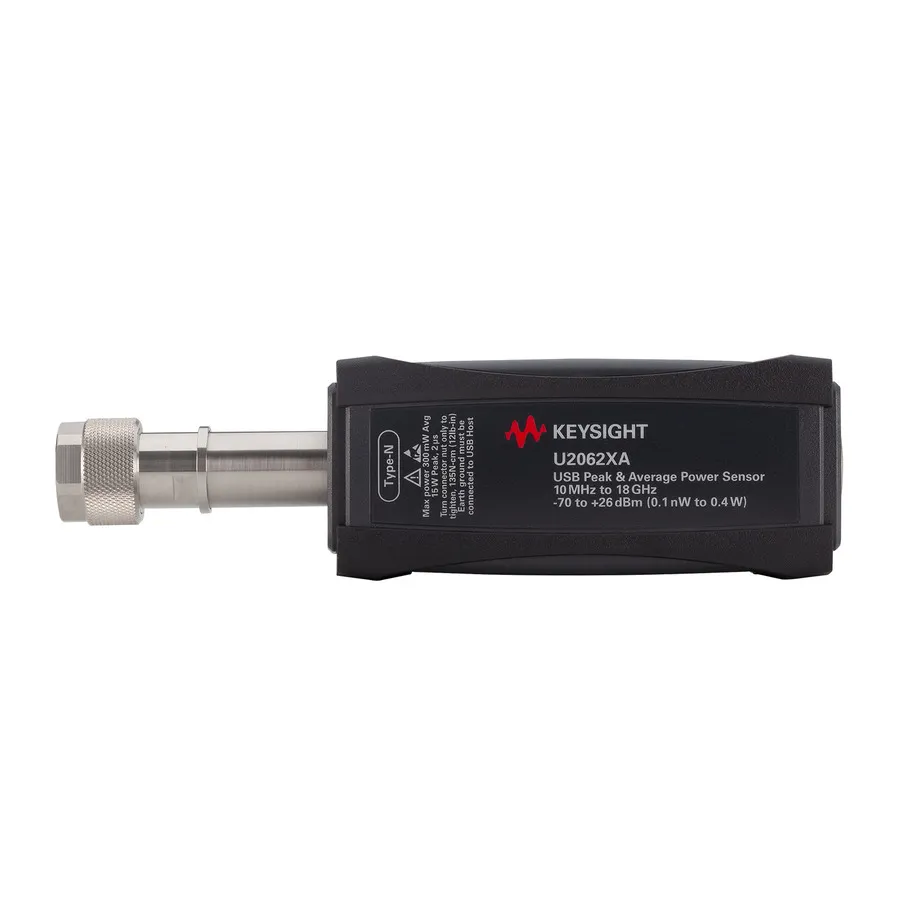

Keysight U2062XA USB Power Sensor
Request a quote
Keysight U2062XA is a wide dynamic range RF power sensor covering 10 MHz - 18 GHz with -70 to +26 dBm measurement range and 50,000 readings/sec speed.
Product details
| Model | U2062XA/100/U2000A-302 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight U2062XA is an X-Series wide dynamic range RF power sensor designed for accurate measurement of average and peak power across 10 MHz to 18 GHz. With a measurement speed of 50,000 readings/sec and real-time processing with zero dead time, it provides accurate and repeatable power measurements for any modulated signal while enabling higher manufacturing throughput.
Key Features
- Frequency range of 10 MHz to 18 GHz
- Power range (continuous average): -70 to +26 dBm
- Fast real-time measurement of 50,000 readings/sec
- Variable sampling rate up to 1M samples/sec with 1M samples data storage
- Real-time measurement with zero dead time for continuous pulse measurement
- Average mode with time selectivity function for full dynamic range measurements
- Internal zero and automatic calibration reduces measurement uncertainty
- N-type (male) connector for RF/microwave equipment compatibility
- USB interface for easy connection and control via BenchVue software
Applications
- RF and microwave power measurement
- Broadband signal analysis up to 18 GHz
- Manufacturing test and quality assurance
- Wireless communication system testing
- Satellite communication and aerospace applications
Specifications
| Frequency Range | 10 MHz to 18 GHz |
| Power Range (Continuous Average) | -70 to +26 dBm |
| Measurement Speed | 50,000 readings/sec |
| Sampling Rate | 1M samples/sec |
| Memory | 1M samples |
| Connector Type | N-type (male) |
| Interface | USB |
