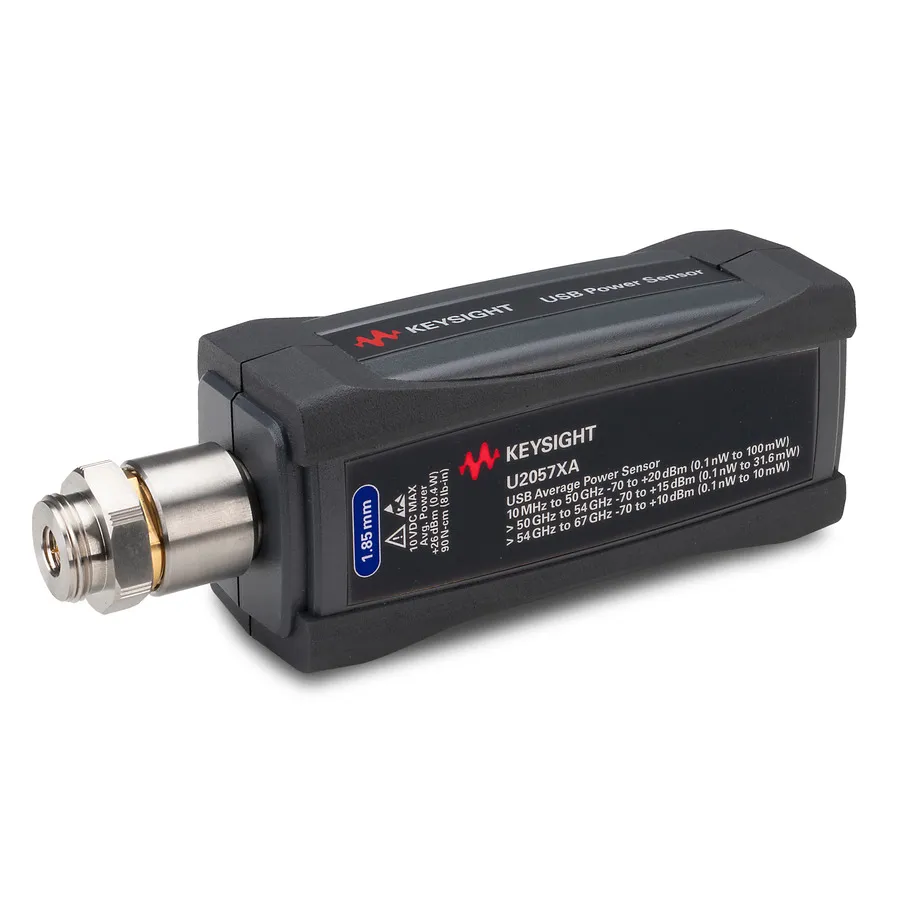

Keysight U2057XA/100/U2000A-301 Wide Dynamic Range Average Power Sensor
Request a quote
Keysight U2057XA/100 bundle includes wide dynamic range power sensor, 5-foot USB cable, and BenchVue software for 10 MHz to 67 GHz measurements.
Product details
| Model | U2057XA/100/U2000A-301 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight U2057XA/100/U2000A-301 is a configured power sensor bundle combining the U2057XA wide dynamic range sensor with a 5-foot USB cable and integrated BenchVue software support. This extended-frequency configuration provides a complete measurement solution for RF power analysis up to 67 GHz with dynamic range coverage from -70 to +20 dBm.
Key Features
- Frequency range: 10 MHz to 67 GHz
- Power range (continuous average): -70 to +20 dBm
- Sampling rate: 20 Msamples/sec
- ≥90 dB wide dynamic range
- Real-time measurement with zero dead time
- Average mode with time-selectivity function
- 1.85mm connector type
- USB interface with 5-foot cable (U2000A-301)
- Full compatibility with BenchVue software suite
Applications
- High-frequency RF and millimeter-wave measurements
- Automated test systems for advanced component characterization
- Signal analysis and troubleshooting in extended-band applications
