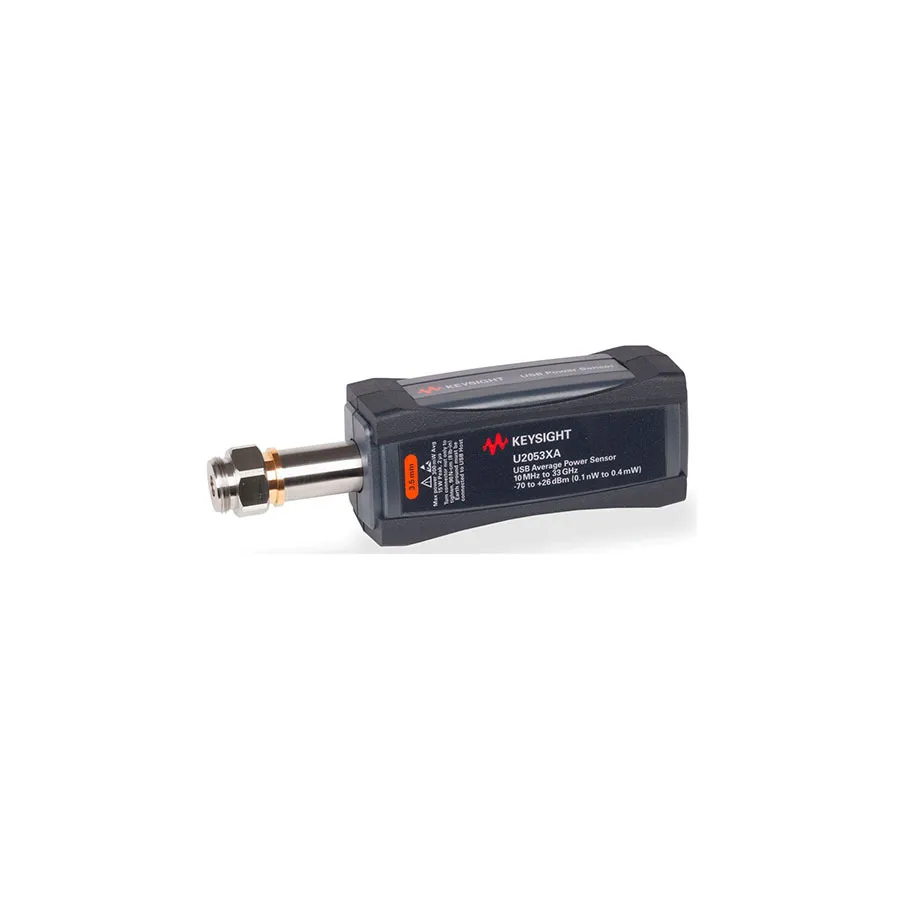

Keysight U2053XA/100/U2000A-301 USB Wide Dynamic Range Average Power Sensor
Keysight U2053XA/100 RF power sensor with 10 MHz–33 GHz bandwidth, wide dynamic range (-70 to +26 dBm), and 50,000 readings/sec measurement speed.
Product details
| Model | U2053XA/100/U2000A-301 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight U2053XA/100 is a USB-connected RF power sensor in the X-Series that provides accurate average power measurements across 10 MHz to 33 GHz with wide dynamic range of -70 to +26 dBm. It combines fast real-time measurement at 50,000 readings/sec with automatic calibration and zero functions to minimize measurement uncertainty.
The sensor includes a BenchVue software license (BV0007B) for easy control, data logging, and visualization without programming. It features Type 3.5 mm (m) connectors and includes a 5-ft USB cable.
Key Features
- Frequency range: 10 MHz to 33 GHz
- Wide dynamic range: -70 to +26 dBm
- Fast measurement speed: 50,000 readings/sec
- Real-time measurement with zero dead time for continuous pulse capture
- Average mode with time-selectivity function for full dynamic range measurements
- Internal zero and automatic calibration to reduce uncertainty
- USB connectivity for direct PC integration
- BenchVue software support (BV0007B license included)
Applications
- Modulated signal power measurement and analysis
- Manufacturing test and quality control
- RF and microwave system characterization
Included Accessories
- U2000A-301 USB cable, 5 ft (1.5 m)
- U2032A BNC male to SMB female trigger cable, 50 Ω, 1.5 m (Quantity: 2)
- Certificate of calibration
Specifications
Request a quote
