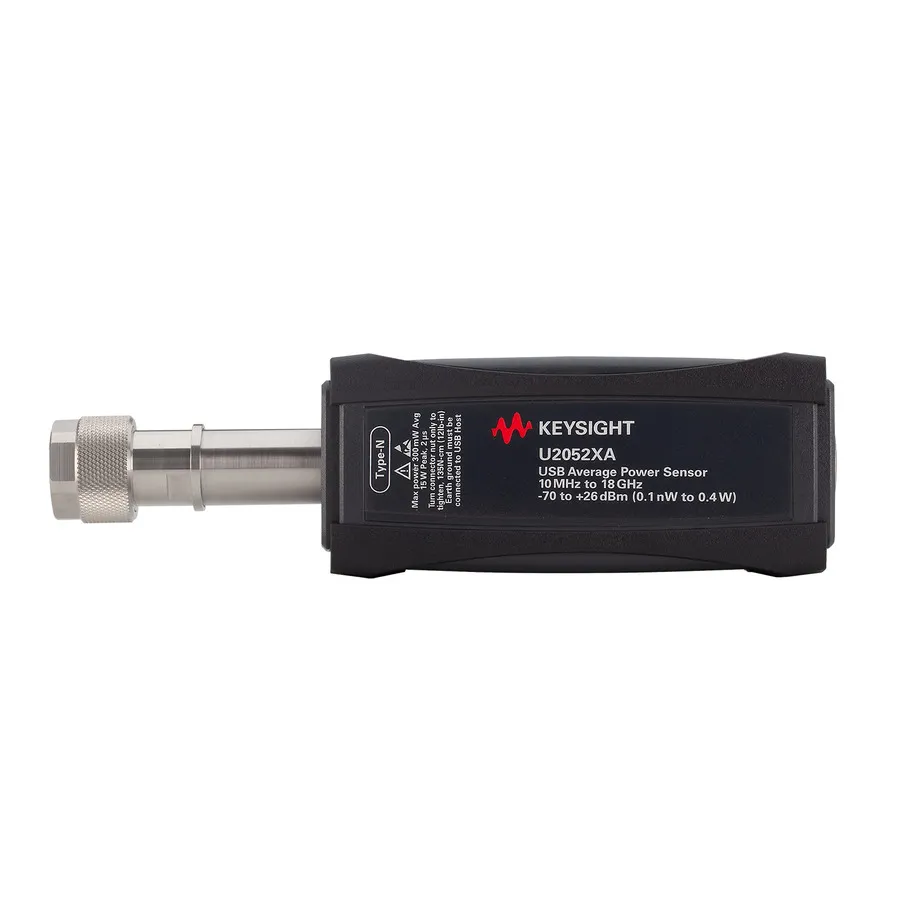

Keysight U2052XA Wide Dynamic Range Average Power Sensor
Request a quote
Keysight U2052XA is a wide dynamic range USB average power sensor with 10 MHz to 18 GHz frequency range, -70 to +26 dBm power range, and high-speed measurement.
Product details
| Model | U2052XA/100/U2000A-301 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight U2052XA is a wide dynamic range USB average power sensor designed for accurate power measurements across the 10 MHz to 18 GHz frequency range. It delivers real-time measurements with zero dead time, enabling accurate detection of both continuous and modulated signals.
Key Features
- Frequency range: 10 MHz to 18 GHz
- Wide power range: -70 to +26 dBm (continuous average)
- High sampling rate: 20 Msamples/sec
- Average mode time selectivity function
- Real-time measurement with zero dead time
- USB interface with N-type (male) connector
- Internal zero and automatic calibration
- BenchVue software integration for data logging and analysis
Applications
- Broadband RF and microwave signal power measurement
- Manufacturing test and quality assurance
- High-speed power monitoring with zero dead time
Specifications
