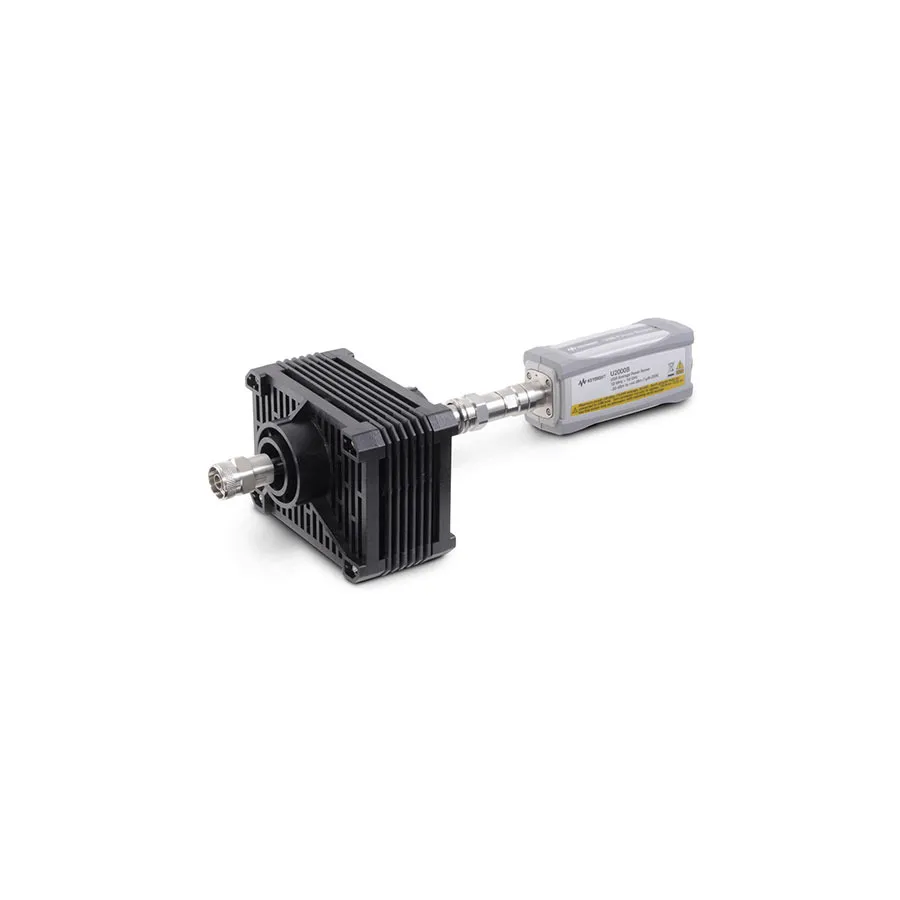

Keysight U2000B/100/U2000A-301 USB Power Sensor
Request a quote
Keysight U2000B/100 RF power sensor with 10 MHz to 18 GHz frequency range, -30 to +44 dBm dynamic range, and 250 readings/second measurement speed.
Product details
| Model | U2000B/100/U2000A-301 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight U2000B/100 is a USB power sensor that measures true average power from RF and microwave devices. Featuring an extended dynamic range, it provides plug-and-play USB connectivity, eliminating the need for a separate power meter. This affordable solution combines simplicity with high-performance multi-channel measurement capabilities.
Key Features
- Frequency range of 10 MHz to 18 GHz
- Extended dynamic range of -30 dBm to +44 dBm
- High measurement speed of up to 250 readings/second
- Internal zeroing while connected to the device under test
- Internal and external trigger measurement support
- BenchVue software license (BV0007B) included for data logging and visualization
- Compatible with other Keysight instruments
Applications
- RF and microwave power measurement
- Multi-channel power monitoring and logging
- Device characterization and testing
- Signal integrity and power analysis
Specifications
