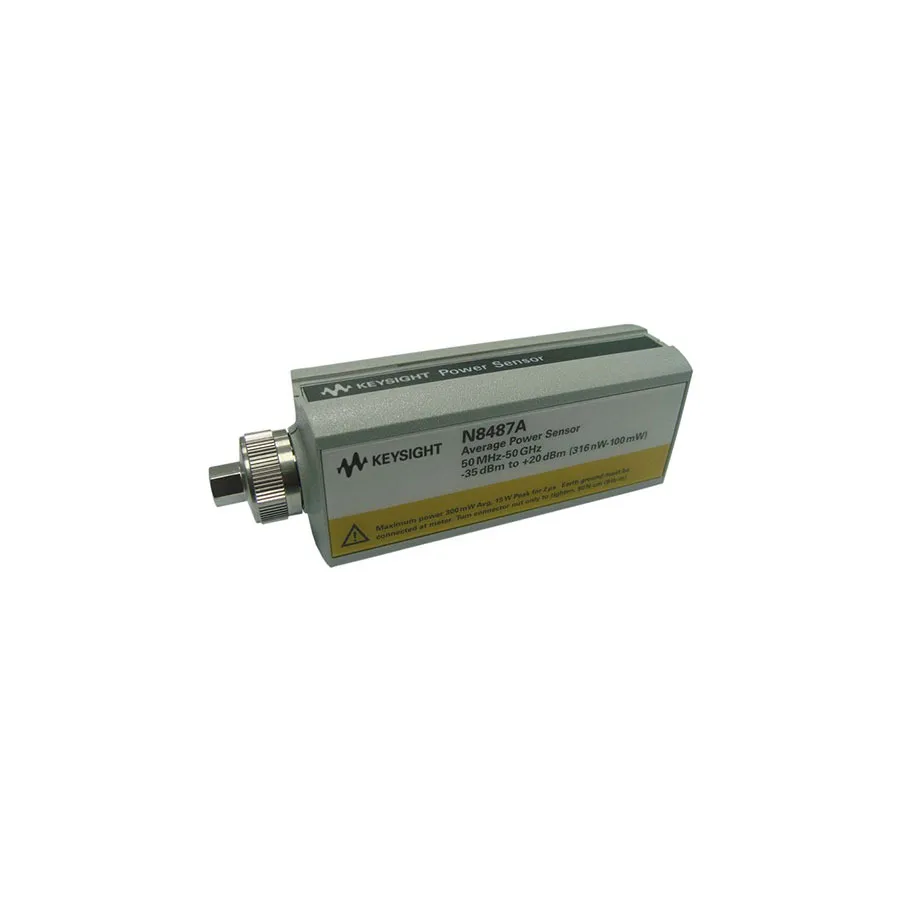

Keysight N8487A/100 Power Sensor
Request a quote
Keysight N8487A/100 is a thermocouple power sensor with 50 MHz to 50 GHz range, -35 to +20 dBm dynamic range, and 2.4mm connector with EEPROM.
Product details
| Model | N8487A/100 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight N8487A/100 is a thermocouple power sensor with a 2.4mm connector, designed for accurate power measurements across a wide frequency range. As an improved replacement for legacy 8480 Series sensors, it incorporates automatic EEPROM calibration and enhanced performance characteristics including excellent linearity and repeatability.
Key Features
- Frequency range: 50 MHz to 50 GHz
- Dynamic range: -35 to +20 dBm
- 2.4mm male connector
- Built-in EEPROM for automatic calibration factor loading
- Thermocouple power sensor technology
- High accuracy with excellent power linearity and repeatability
- Compatible with EPM (N1913A/14A, E4418B/19B), EPM-P (E4416A/17A), and P-Series (N1911A/12A) power meters
Applications
- RF and microwave power measurement
- Power meter calibration and verification
- Replacement for legacy 8480 Series sensors
