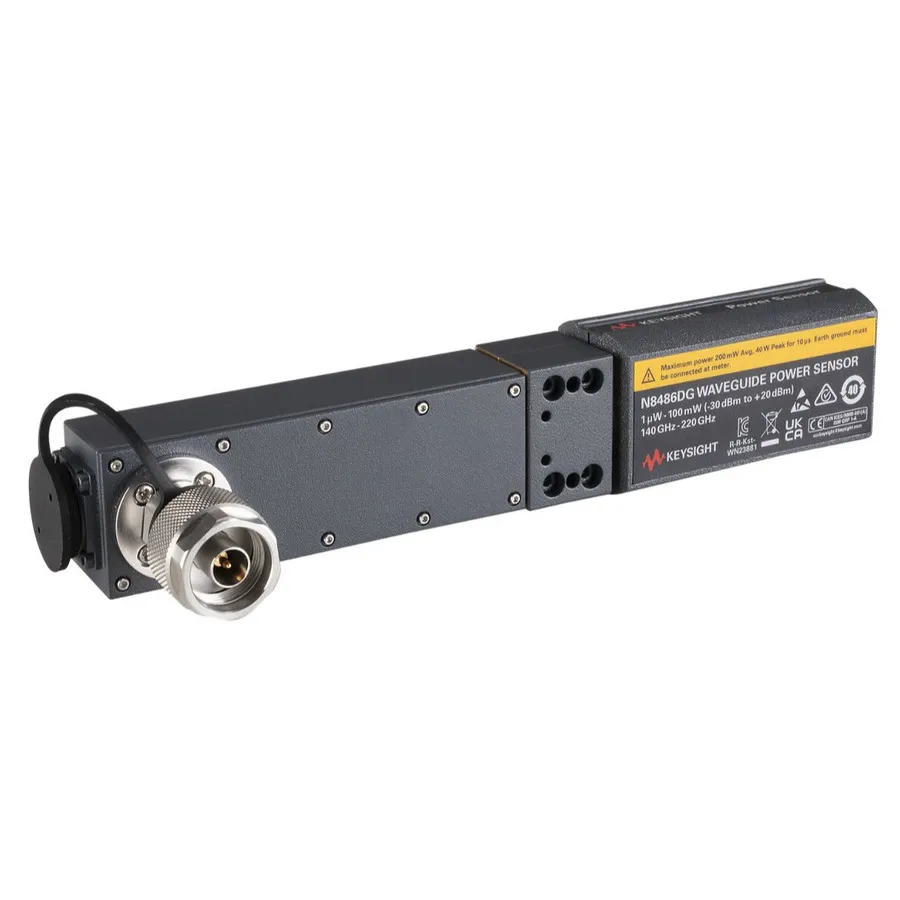

Keysight N8486DG/100 Extended G-Band Diode Power Sensor
Request a quote
Keysight N8486DG/100 is a diode waveguide power sensor for extended G-band (140–220 GHz) with -30 to +20 dBm dynamic range, WR-5 flange connector, and 6G calibration support.
Product details
| Model | N8486DG/100 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight N8486DG/100 is a diode waveguide power sensor designed for precision measurements in the extended G-band frequency range (140–220 GHz). It features a WR-5 flange connector for direct waveguide coupling and provides a dynamic range of -30 to +20 dBm for both CW and average power measurements. As part of the N8486DX Series, this sensor supports high-frequency source power calibration for 6G research, design validation, and manufacturing applications.
Key Features
- Frequency coverage: 140 to 220 GHz (G-band)
- Dynamic range: -30 to +20 dBm (average power measurement)
- Diode sensing element for CW/average power measurement
- Connector type: WR-5 flange connector (G-band)
- Compatible with Keysight N1913/14A EPM and N1913/14B EPM power meters
- Manual calibration factor entry (no EEPROM)
Applications
- High-frequency source power calibration for 6G applications
- Design validation and R&D testing
- Manufacturing power measurement
- Extended G-band waveguide measurements (140–220 GHz)
Specifications
| Frequency | 220 GHz |
| Dynamic Range | -30 to +20 dBM |
| Connector Type | WR-5 |
| Frequency Range | 140 to 220 GHz |
| Type | Diode Power Sensor |
| Series | N8486DX Series |
