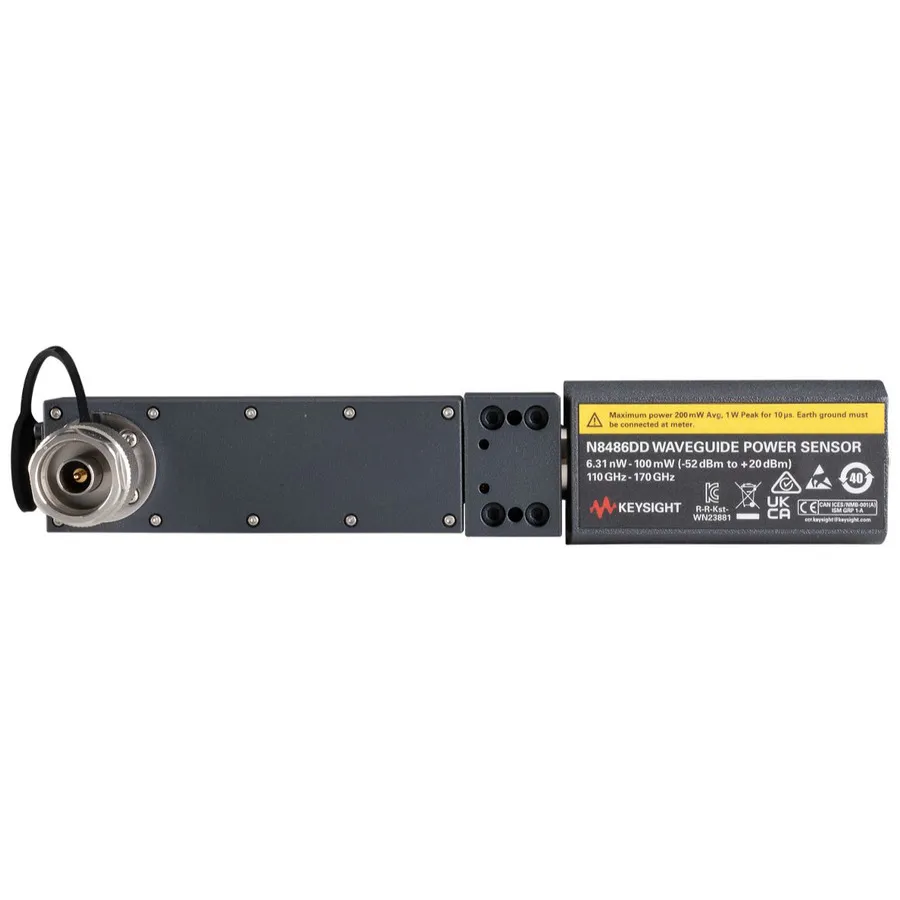

Keysight N8486DD/200 G-Band Diode Power Sensor with EEPROM
Request a quote
Keysight N8486DD/200 is a diode waveguide power sensor for G-band (110–170 GHz) with -52 to +10 dBm dynamic range, built-in EEPROM, and WR-6 flange connector.
Product details
| Model | N8486DD/200 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight N8486DD/200 is a diode waveguide power sensor designed for precise measurements across the G-band frequency range (110–170 GHz). Unlike the /100 option, the /200 includes built-in EEPROM that automatically stores calibration factors, providing a wider dynamic range for power measurement. It supports both average power (-52 to -10 dBm) and CW power measurements (>-10 to +10 dBm), making it ideal for high-frequency source power calibration in 6G research and manufacturing applications.
Key Features
- Frequency coverage: 110 to 170 GHz (G-band)
- Wide dynamic range: -52 to -10 dBm (average) and >-10 to +10 dBm (CW)
- Built-in EEPROM stores calibration factors automatically
- Diode sensing element for wide dynamic range measurement
- Connector type: WR-6 flange connector
- Compatible with Keysight N1913/14A EPM and N1913/14B EPM power meters
Applications
- High-frequency source power calibration (VNA and signal generator)
- 6G research and development
- Manufacturing power measurement with wider measurement range
- G-band waveguide power measurement
Specifications
| Frequency | 170 GHz |
| Dynamic Range | -52 to +10 dBM |
| Connector Type | WR-6 |
| Frequency Range | 110 to 170 GHz |
| Type | Diode Power Sensor |
| Series | N8486DX Series |
