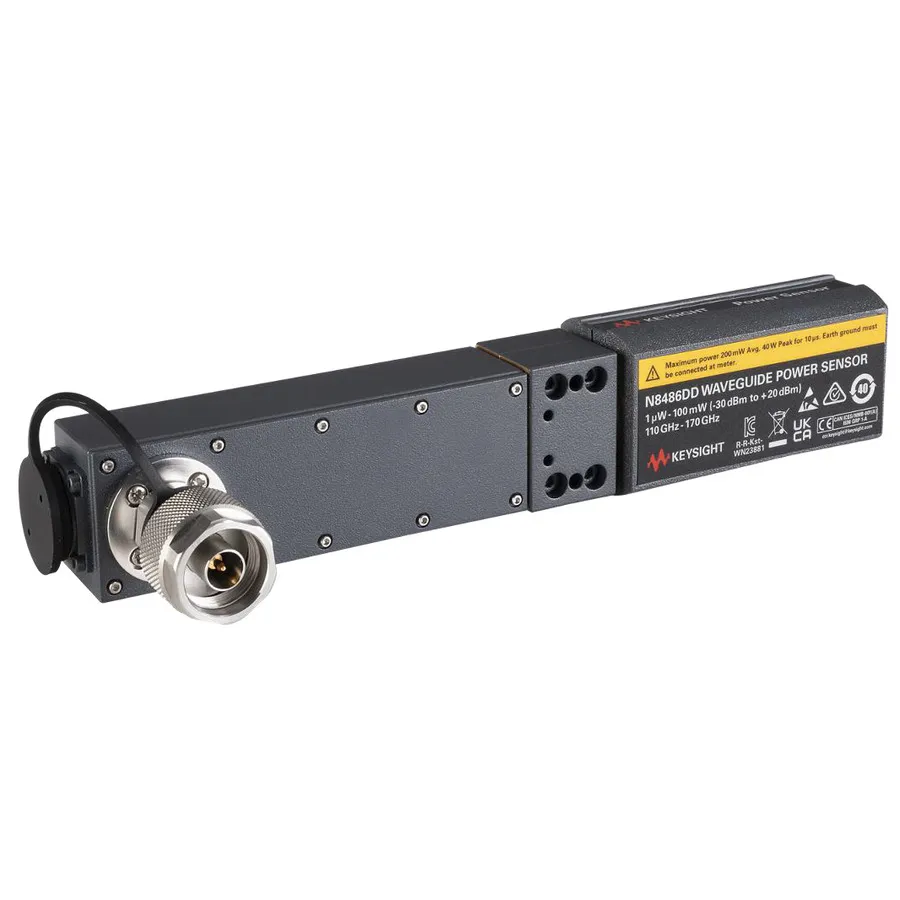

Keysight N8486DD/100 G-Band Diode Power Sensor
Request a quote
Keysight N8486DD/100 is a diode waveguide power sensor for D-band (110–170 GHz) with -30 to +20 dBm dynamic range and WR-6 flange connector.
Product details
| Model | N8486DD/100 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight N8486DD/100 is a diode waveguide power sensor designed for precise measurements in the D-band frequency range (110–170 GHz). It features a diode sensing element that enables wide dynamic range measurements for CW and average power, with a WR-6 flange connector for direct waveguide coupling. This sensor supports high-frequency source power calibration for advanced applications including 6G research and manufacturing.
Key Features
- Frequency coverage: 110 to 170 GHz (D-band)
- Dynamic range: -30 to +20 dBm (average power measurement)
- Diode sensing element for CW/average power measurement
- Connector type: WR-6 flange connector
- Compatible with Keysight N1913/14A EPM and N1913/14B EPM power meters
- Manual calibration factor entry (no EEPROM)
Applications
- High-frequency source power calibration (VNA and signal generator)
- 6G research and development validation
- Manufacturing power measurement
- D-band waveguide power measurement
Specifications
| Frequency | 170 GHz |
| Dynamic Range | -30 to +20 dBM |
| Connector Type | WR-6 |
| Frequency Range | 110 to 170 GHz |
| Type | Diode Power Sensor |
| Series | N8486DX Series |
