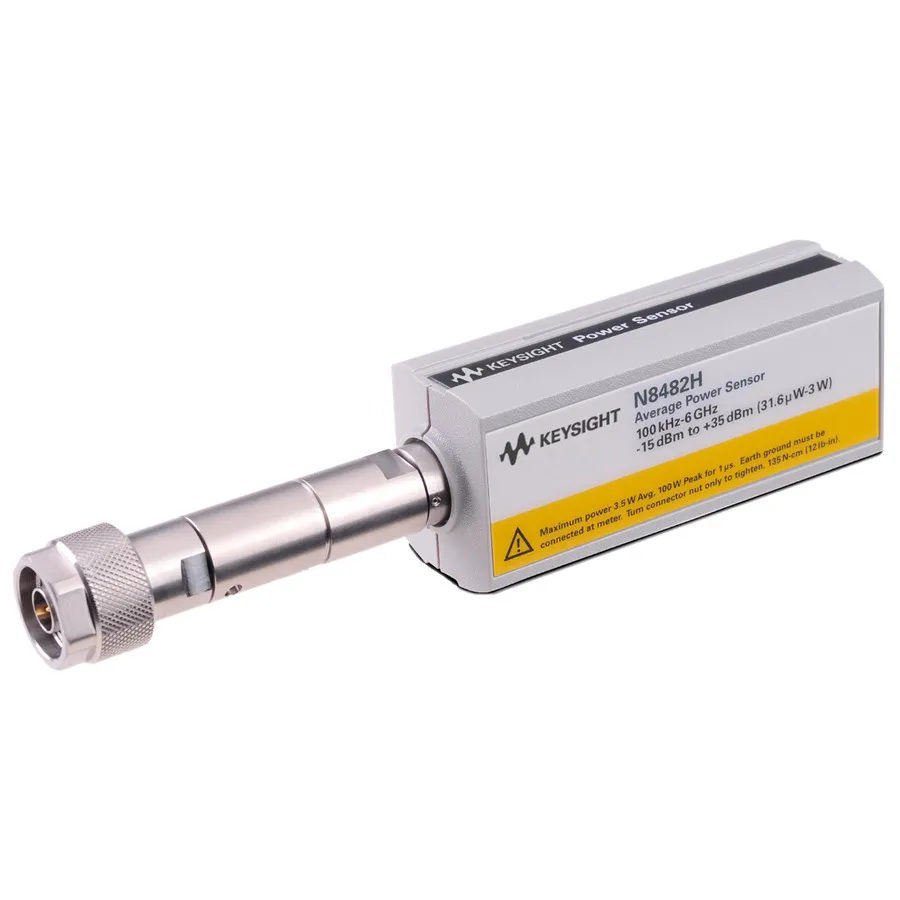

Keysight N8482H/100/STD RF Power Sensor
Request a quote
Keysight N8482H/100/STD RF power sensor with 100 kHz–6 GHz range and -15 to +35 dBm dynamic range; built-in EEPROM for automatic calibration.
Product details
| Model | N8482H/100/STD |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight N8482H/100/STD is a thermocouple RF power sensor with high-power handling capability and an integrated EEPROM for automatic calibration factor loading. This model provides a wider dynamic range optimized for higher power measurements and serves as a replacement for legacy 8480 series sensors.
Key Features
- Frequency range: 100 kHz to 6 GHz
- Dynamic range: -15 dBm to +35 dBm (optimized for higher power)
- Built-in EEPROM for automatic calibration factor loading
- High accuracy with excellent power linearity and repeatability
- Type-N (m) connector
- Compatible with Keysight EPM (N1913A/14A, E4418B/19B), EPM-P (E4416A/17A), and P-Series (N1911A/12A) power meters
Applications
- RF and microwave power measurement at higher power levels
- Production and field service testing
- Equipment validation and characterization
Specifications
