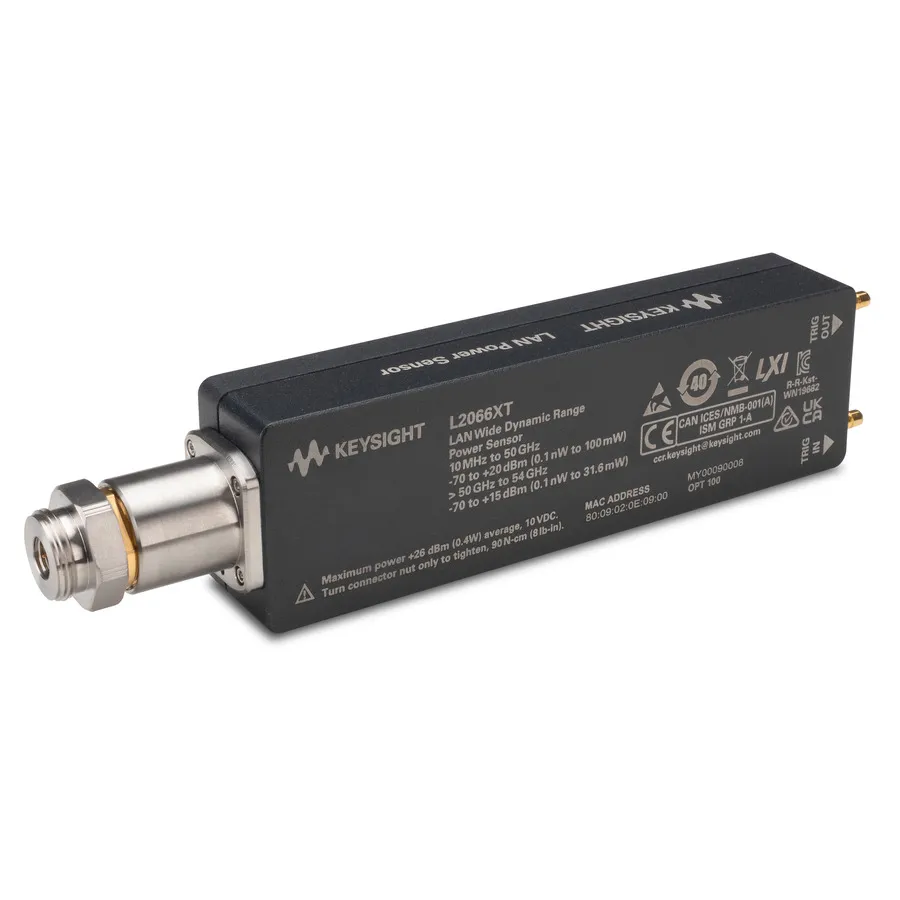

Keysight L2066XT Thermal Vacuum Compliance Peak and Average Power Sensor
Request a quote
Keysight L2066XT is an RF power sensor for 10 MHz to 54 GHz with thermal vacuum compliance, LAN connectivity, and 50,000 readings/sec measurement rate.
Product details
| Model | L2066XT/100/U2037A |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight L2066XT is a thermal vacuum-compliant RF power sensor for measuring peak and average power across 10 MHz to 54 GHz. Built specifically for space-qualified applications, it offers LAN connectivity, real-time measurements up to 50,000 readings per second, and maintains performance in thermal vacuum environments.
Key Features
- Frequency range: 10 MHz to 54 GHz
- Power range: -70 to +20 dBm (continuous average)
- Sampling rate: 20 Msamples/sec
- Wide dynamic range: ≥90 dB
- Average mode time selectivity function
- Real-time measurement with zero dead time
- LAN connectivity for remote control and monitoring
- 1.85 mm connector type
- Internal zero and automatic calibration
- BenchVue software support for data logging and analysis
Applications
- Space systems and satellite power measurements
- Thermal vacuum chamber testing
- Modulated signal analysis in TVAC environments
- Remote RF power monitoring
