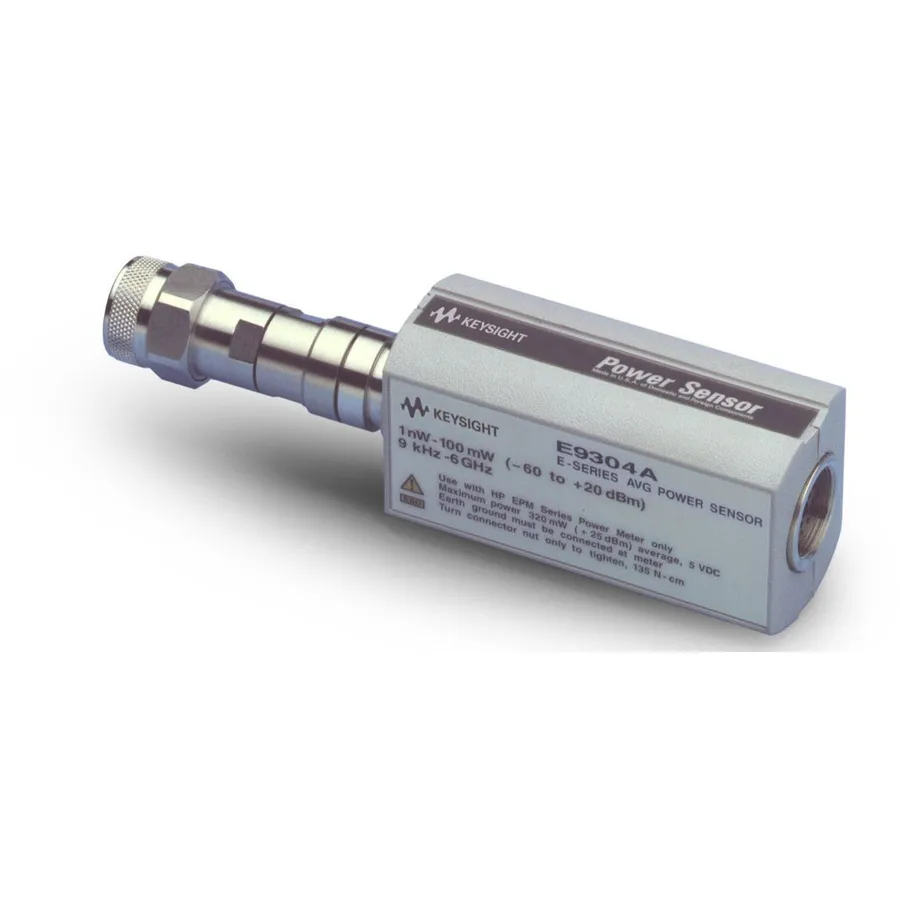

Keysight E9304A/H18 RF Power Sensor
Request a quote
Keysight E9304A/H18 is a diode RF power sensor covering 9 kHz to 6 GHz with -60 to +20 dBm range, ideal for EMC/EMI and VLF measurements.
Product details
| Model | E9304A/H18 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight E9304A/H18 is a diode power sensor designed for average power measurements over the frequency range 9 kHz to 6 GHz with a power range of -60 to +20 dBm. This sensor is ideal for very low frequency (VLF) power measurements and EMC/EMI test applications such as radiated immunity testing. The E-Series sensors feature calibration factors stored in EEPROM and operate over a wide dynamic range, designed for use with EPM series power meters.
Key Features
- Frequency coverage: 9 kHz to 6 GHz (18 GHz with special option)
- Power range: -60 to +20 dBm
- Low frequency coverage ideal for EMC/EMI test applications
- High sensitivity and fast measurement speed for reduced calibration time
- Suitable for measuring transmitter power and receiver sensitivity at VLF to microwave frequencies
- Calibration factors and corrections stored in EEPROM
- Compatible with EPM, EPM-P, and P-Series power meters
Applications
- EMC/EMI testing and radiated immunity testing (IEC61000-4-3)
- Very Low Frequency (VLF) power measurements
- Transmitter power measurements
- Receiver sensitivity testing
Specifications
| Series | E Series |
