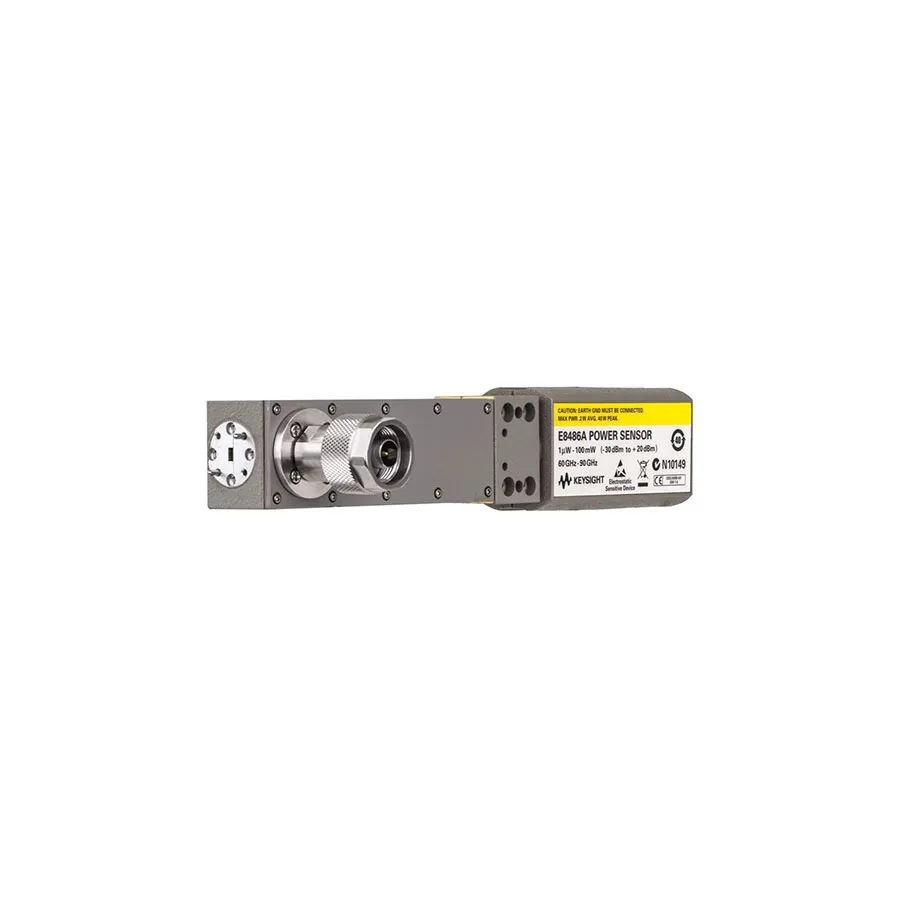

Keysight E8486A/200 Waveguide Power Sensor
Request a quote
Keysight E8486A/200 Waveguide Power Sensor for 60–90 GHz measurements with 1.06 SWR and integrated 50 MHz calibration port.
Product details
| Model | E8486A/200 |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight E8486A/200 is a precision waveguide power sensor designed for accurate RF and microwave power measurements in the 60–90 GHz E-Band frequency range. It provides high-reliability average power detection using proven Modified Barrier Integrated Diode (MBID) technology and operates across a dynamic range of -60 dBm to +20 dBm.
Key Features
- Excellent SWR of 1.06 (>30 dB return loss) minimizes measurement uncertainty from source/sensor mismatch
- Integrated 50 MHz calibration port for easy calibration and NIST traceability at millimeter-wave frequencies
- Square-law detector characteristic for true-average power detection
- Compatible with Keysight EPM, EPM-P, and P-Series power meters
- Waveguide interface for secure, low-loss connections at high frequencies
Applications
- RF and microwave power measurements in E-Band communications systems
- Component characterization and validation
- Millimeter-wave system performance verification and testing
Specifications
| Series | 8486A Series |
