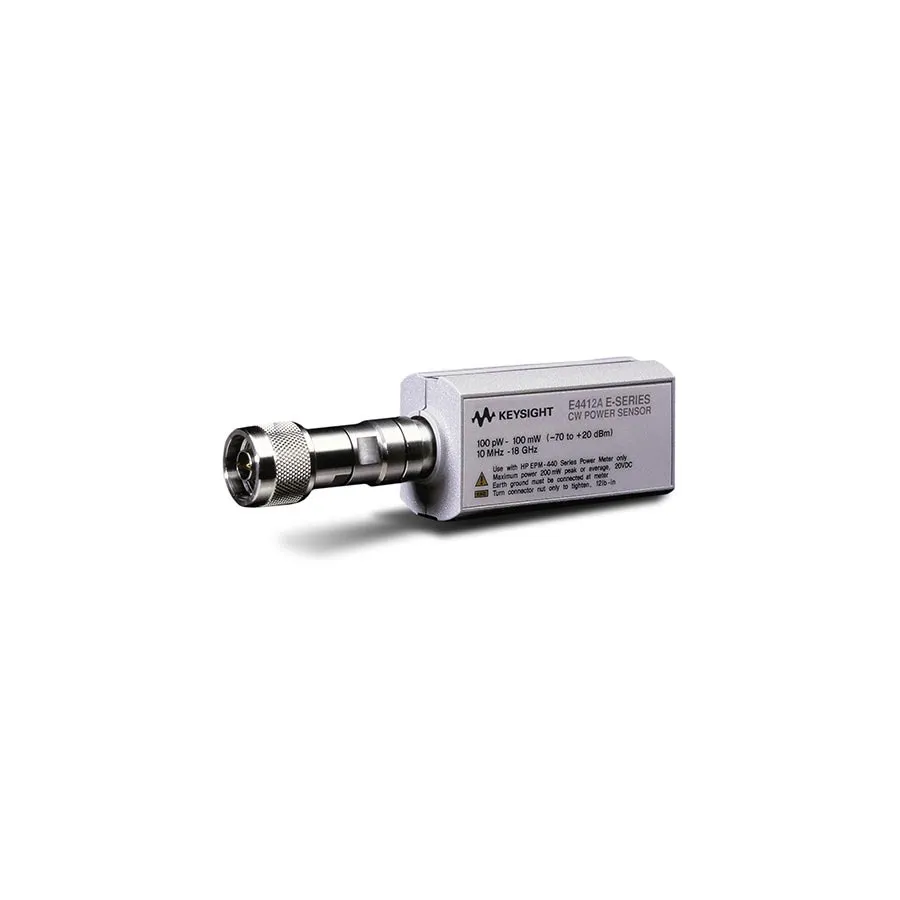

Keysight E4412A Wide Dynamic Range Power Sensor
Request a quote
Keysight E4412A is a CW diode power sensor covering 10 MHz to 18 GHz with 90 dB dynamic range (-70 to +20 dBm) and measurement speeds up to 400 readings per second.
Product details
| Model | E4412A |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
Keysight E4412A is a CW diode power sensor that measures average power across the frequency range 10 MHz to 18 GHz. With a wide 90 dB dynamic range (-70 to +20 dBm), it delivers fast measurement speeds and NIST-traceable calibration for accurate RF and microwave power measurement.
Key Features
- Frequency range: 10 MHz to 18 GHz
- Power range: -70 to +20 dBm (90 dB dynamic range)
- Fast measurement speed: up to 400 readings per second
- Calibration factors and temperature compensation data stored in EEPROM
- Excellent SWR for reduced mismatch uncertainty
- NIST-traceable calibration for measurement accuracy
- Compatible with EPM, EPM-P, and P-series power meters
Applications
- RF power measurement in communication systems
- Microwave power monitoring and analysis
- Base station and transmitter power verification
- Laboratory and field RF power measurement
Specifications
| Series | E Series |
