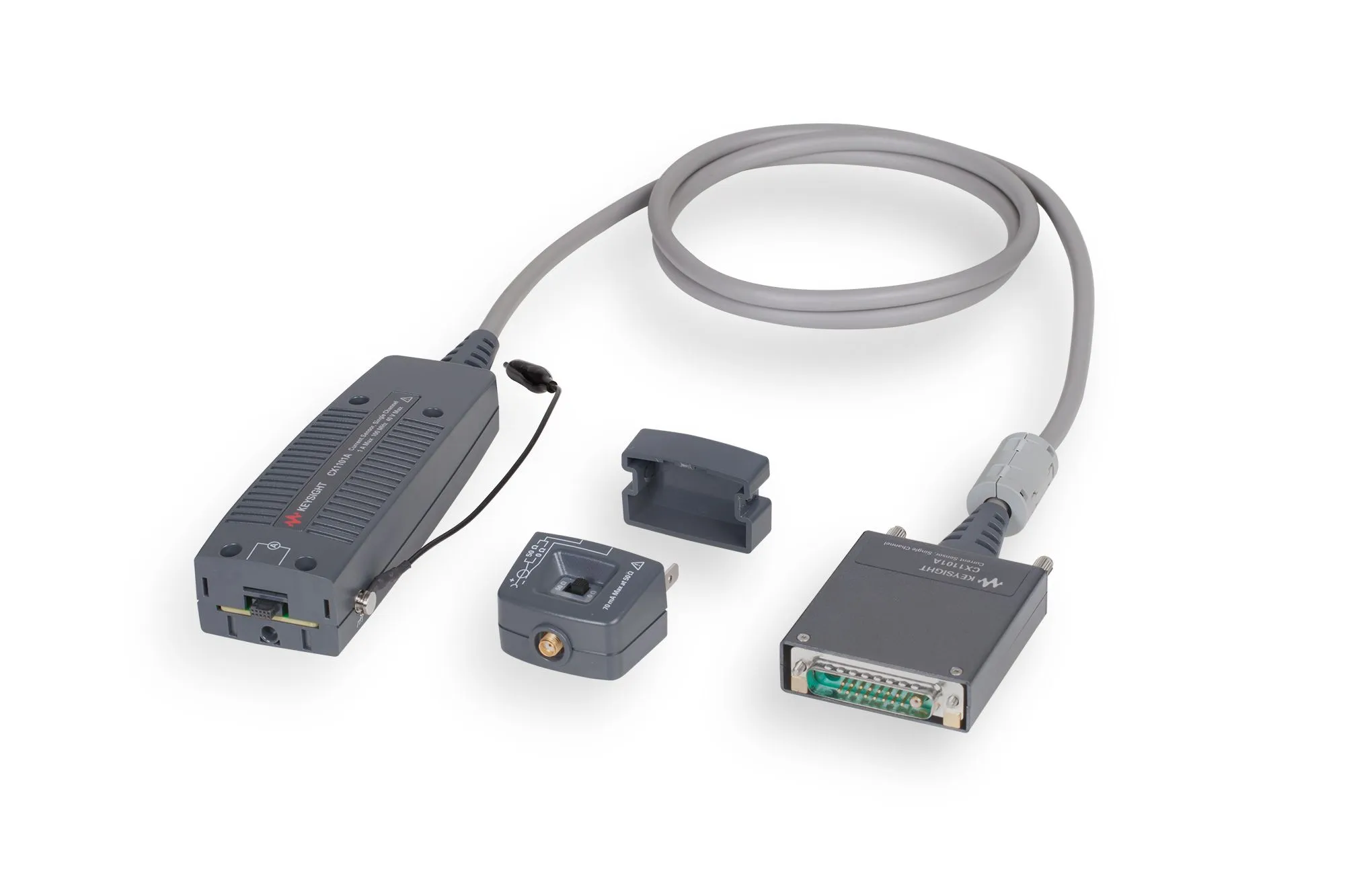

Keysight CX1101A Current Sensor
Request a quote
Keysight CX1101A is a single-channel current sensor with 40 nA to 1 A range, 100 MHz bandwidth, and ±40 V common mode voltage capability.
Product details
| Model | CX1101A |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight CX1101A is a single-channel current sensor for the CX3300 series device current waveform analyzer. It measures current waveforms from 40 nanoamperes to 1 ampere with a maximum bandwidth of 100 MHz and supports a common mode voltage range of ±40 V. The sensor uses wideband noise suppressed measurement technology and features low input resistance for minimal voltage drop in the circuit under test.
Key Features
- Current waveform measurements from 40 nA to 1 A
- Maximum bandwidth: 100 MHz
- Common mode voltage range: ±40 V
- Low input resistance: 410 mΩ typical or 50 Ω typical
- Extendable to 10 A with optional CX1206A sensor head
- Wideband noise suppressed measurement technology
Applications
- Power electronics testing and characterization
- Low-power wireless device current profiling
- Semiconductor device analysis
- Microcontroller power consumption measurement
Included Accessories
- CX1203A Coaxial Termination Sensor Head
- Connection cables
Specifications
| High Frequency (range) | 10MHz <= 100MHz |
