Keysight 85515A 4-in-1 OSLT Mechanical Calibration Kit
Request a quote
Keysight 85515A is a compact 4-in-1 OSLT mechanical calibration kit with Type-N female connectors, DC to 9 GHz, for RF test equipment calibration.
Product details
| Model | 85515A |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview

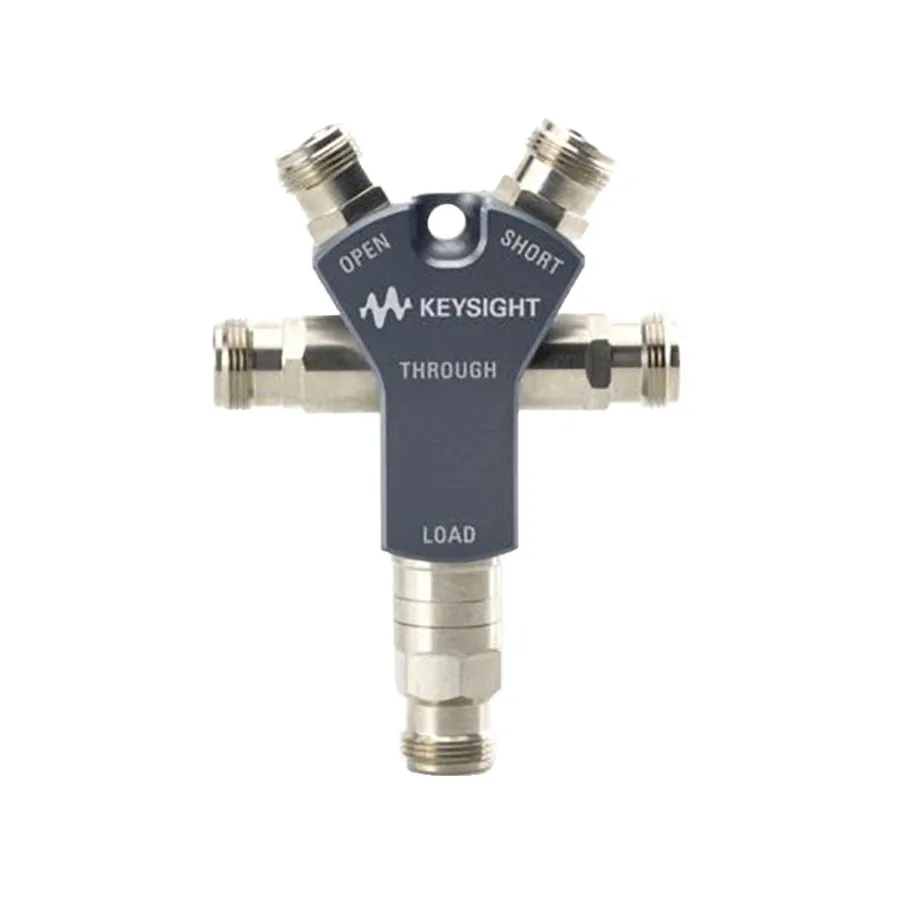

The Keysight 85515A is a compact 4-in-1 mechanical calibration kit used for calibrating RF and microwave test equipment. It combines Open, Short, Load, and Through standards in a single small unit, making it ideal for field work and lab environments. The kit's through connector allows calibration of non-insertable devices such as cables and filters with female-female connections.
Key Features
- 4-in-1 OSLT (Open, Short, Load, Through) standards
- Type-N female connectors, 50 ohm impedance
- DC to 9 GHz frequency coverage
- Open phase error: 0 to 4 GHz ≤ 2.0°, 4 to 9 GHz ≤ 3.0°
- Short phase error: 0 to 9 GHz ≤ 1.25°
- Load return loss: 0 to 6 GHz ≥ 42 dB, 6 to 9 GHz ≥ 35 dB
- Through insertion loss: 0 to 4 GHz ≤ 0.05 dB, 4 to 9 GHz ≤ 0.1 dB
- Compact size: 104 x 74 x 22 mm
Applications
- Network analyzer and impedance analyzer calibration
- RF power sensor calibration
- Cable and filter characterization
- Precision RF measurement systems
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Connector Type | Type N-Female (Plug) |
| Low Frequency (range) | DC <= 1kHz |
| Type | Mechanical OSLT |
| Frequency | DC to 9GHz |
| Connector Type | Type-N(f/f) |
| Number of Ports | NA |
| Impedance | 50 Ohm |
| Series | 8551xA Series |
