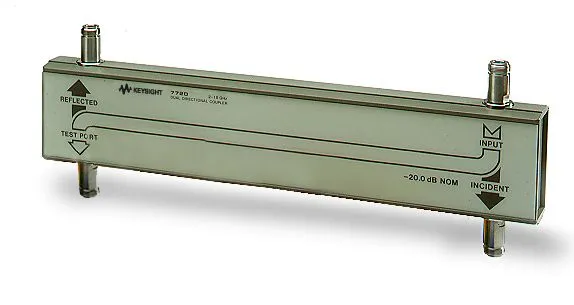

Keysight 772D RF Coupler
Request a quote
Keysight 772D is a broadband RF dual-directional coupler for 2 to 18 GHz with 20 dB nominal coupling and 30 dB directivity.
Product details
| Model | 772D |
| Manufacturer | Keysight |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Keysight 772D is a high-performance dual-directional RF coupler designed for broadband measurements across the 2 to 18 GHz frequency range. This coupler can be used with Keysight power sensors and power meters for reflectometer applications, enabling both forward and reverse power measurements on transmitters, components, and broadband systems.
Key Features
- Frequency range: 2 to 18 GHz
- Nominal coupling: 20 dB
- Coupling variation: ±1.0 dB maximum
- Directivity: 30 dB to 12.4 GHz, 27 dB to 18 GHz
- Broadband design allows single test setup and calibration across entire frequency range
- Compatible with Keysight power sensors and power meters
Applications
- Forward and reverse power measurements on transmitters
- Component reflectometer testing
- Broadband system power measurement
- Antenna and transmission line measurements
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
