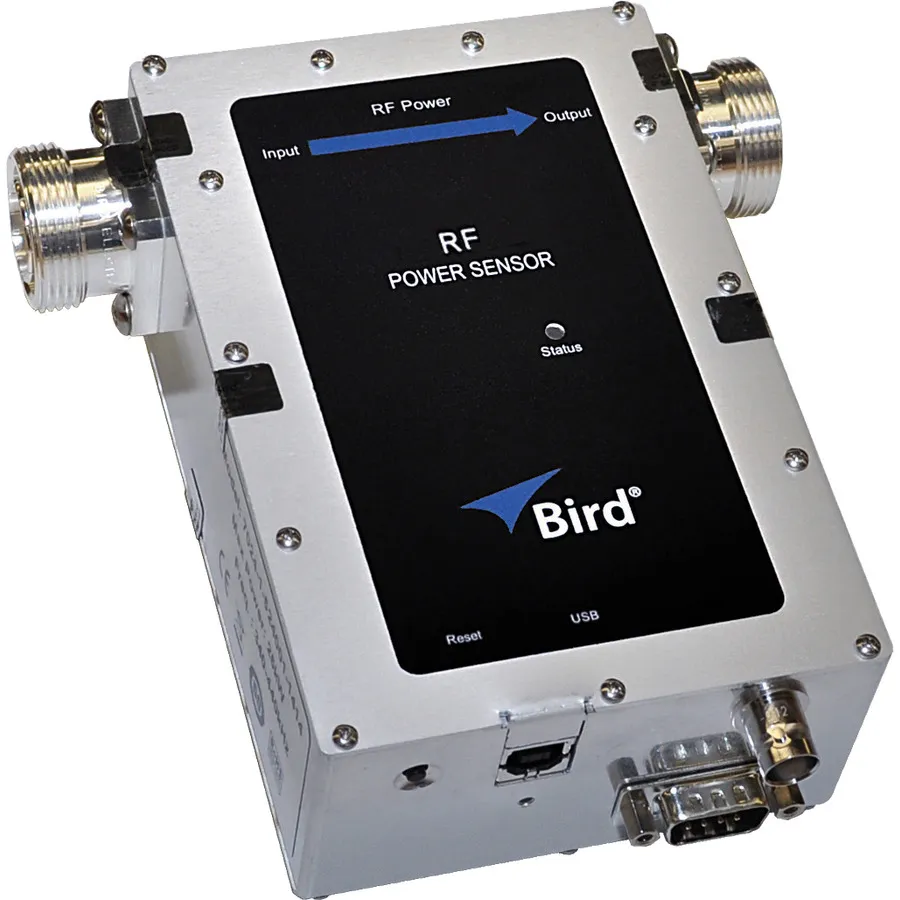

Bird 7027-1-595301-0101 Semiconductor Pulse Sensor
Request a quote
Bird 7027-1-595301-0101 RF power sensor for semiconductor applications, 1% accuracy at 13.56 MHz with NIST traceable calibration, 1 W to 1 kW range.
Product details
| Model | 7027-1-595301-0101 |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 7027 Series RF Power Sensor is designed for precision semiconductor applications, delivering reliable and traceable accuracy to development and production engineers in laboratory and semiconductor fabrication environments. At calibrated frequencies including 13.56 MHz, this sensor is capable of 1% accuracy for measurements of both continuous wave (CW) and pulsed signals, with NIST traceable calibration.
Key Features
- Time domain display for detailed waveform analysis
- Gated power measurements with up to four sets of gates available
- NIST traceable calibration ensuring measurement reliability
- Pulse state width measurements down to 1 microsecond (sensor dependent)
- Pulse repetition rate measurement from 10 Hz up to 100 kHz
- Harmonic filtering for clean measurements
- External sync input for synchronized measurements
- RF Interlock capability (optional)
- SCPI command set automation for integration with test systems
- 1% accuracy across dynamic range for enhanced measurement confidence
Applications
- Semiconductor device development and characterization
- Production testing in semiconductor fabrication facilities
- RF source calibration and validation
- Multilevel pulse measurement analysis
Specifications
| Connector Type | N (f) |
| Series | 7027 Series |
| Impedance | 50 Ohms |
