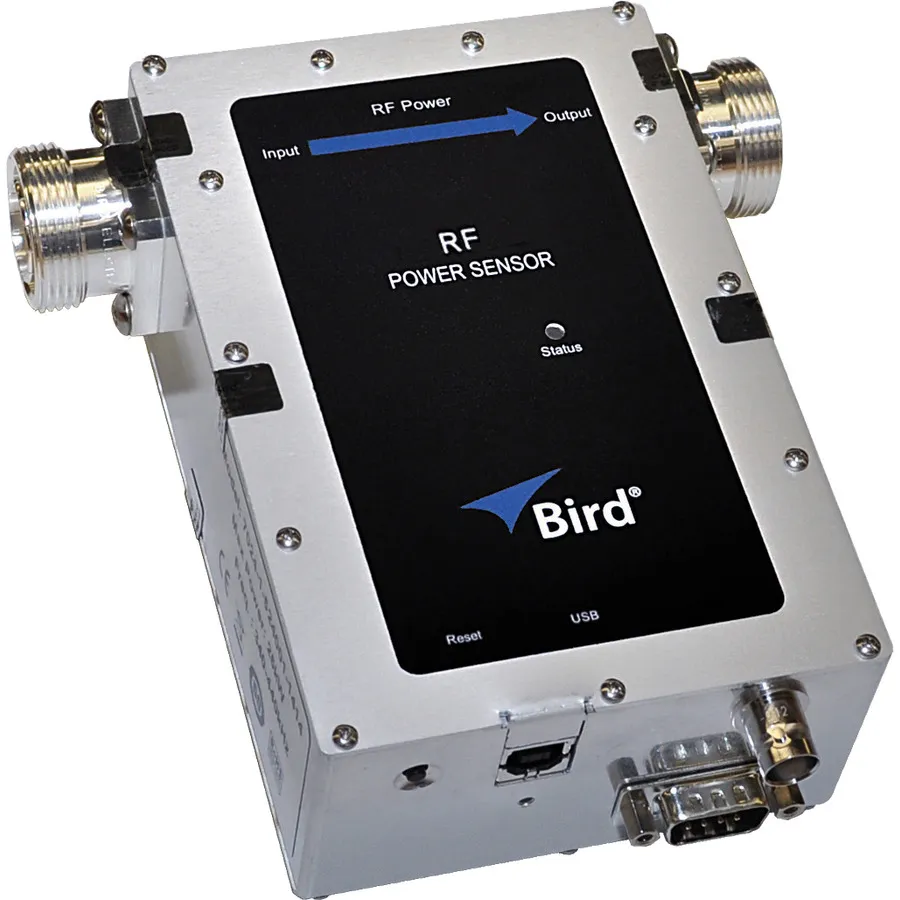

Bird 7027-1-594301-1414 Semiconductor Pulse Sensor
Request a quote
Bird 7027-1-594301-1414 is a semiconductor pulse sensor with 1% accuracy and NIST calibration, measuring 10 W to 10 kW RF power at 13.56 MHz via USB.
Product details
| Model | 7027-1-594301-1414 |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 7027-1-594301-1414 is a semiconductor pulse sensor for RF power measurement at 13.56 MHz. This 7027 Series sensor is optimized for laboratory and production environments, covering 10 W to 10 kW with 1% measurement accuracy and NIST traceable calibration. USB interface simplifies data acquisition and system integration.
Key Features
- Time domain display with gated power measurements (up to four sets of gates)
- NIST traceable calibration with 1% accuracy
- Pulse width measurements down to 1 µs
- Pulse repetition rate measurements from 10 Hz to 100 kHz
- Harmonic filtering and external sync input
- USB connectivity for computer-based operation
- SCPI command set for test automation and control
- Dual 7/16(f) connectors for standard industrial configurations
- Optional RF Interlock protection
Applications
- Semiconductor manufacturing and process control
- RF power source verification and optimization
- Industrial pulse power measurement systems
- Automated test and production floor applications
Specifications
| Connector Type | 7/16 (f) |
| Series | 7027 Series |
| Impedance | 50 Ohms |
