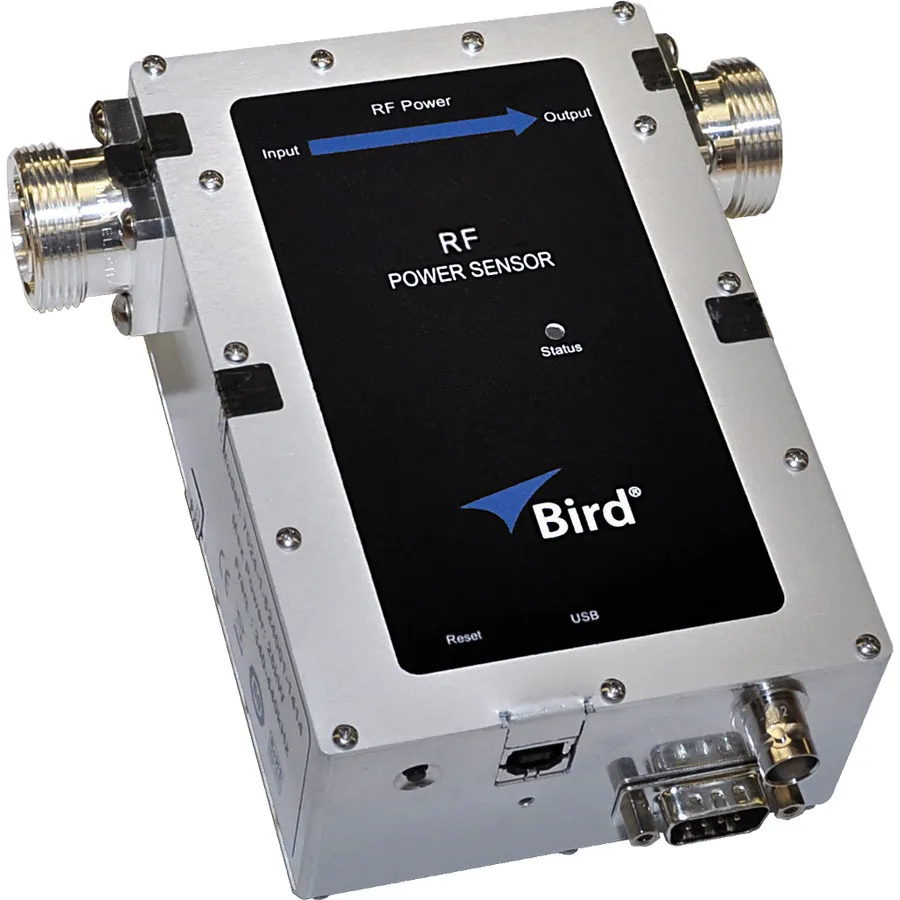

Bird 7027-1-544602-1213 Semiconductor Pulse Sensor
Request a quote
Bird 7027-1-544602-1213 is a semiconductor pulse sensor with 1% accuracy and NIST calibration, measuring 55 W to 55 kW RF power at 20 MHz via Ethernet.
Product details
| Model | 7027-1-544602-1213 |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 7027-1-544602-1213 is a semiconductor pulse sensor designed for precise RF power measurement in laboratory and production environments. Operating at 20 MHz, this 7027 Series sensor covers a power range from 55 W to 55 kW with 1% measurement accuracy and NIST traceable calibration. Ethernet connectivity enables remote monitoring and data collection.
Key Features
- Time domain display with gated power measurements (up to four sets of gates)
- NIST traceable calibration with 1% accuracy
- Pulse width measurements down to 1 µs
- Pulse repetition rate measurements from 10 Hz to 100 kHz
- Harmonic filtering and external sync input
- Ethernet connectivity for remote operation and data logging
- SCPI command set for automation and integration
- Optional RF Interlock protection
Applications
- Semiconductor manufacturing and quality assurance
- RF power amplifier development and testing
- Precision pulse power measurement
- Production line power monitoring and remote management
Specifications
| Connector Type | HN (f-m) |
| Frequency Range | 20MHz |
| Series | 7027 Series |
