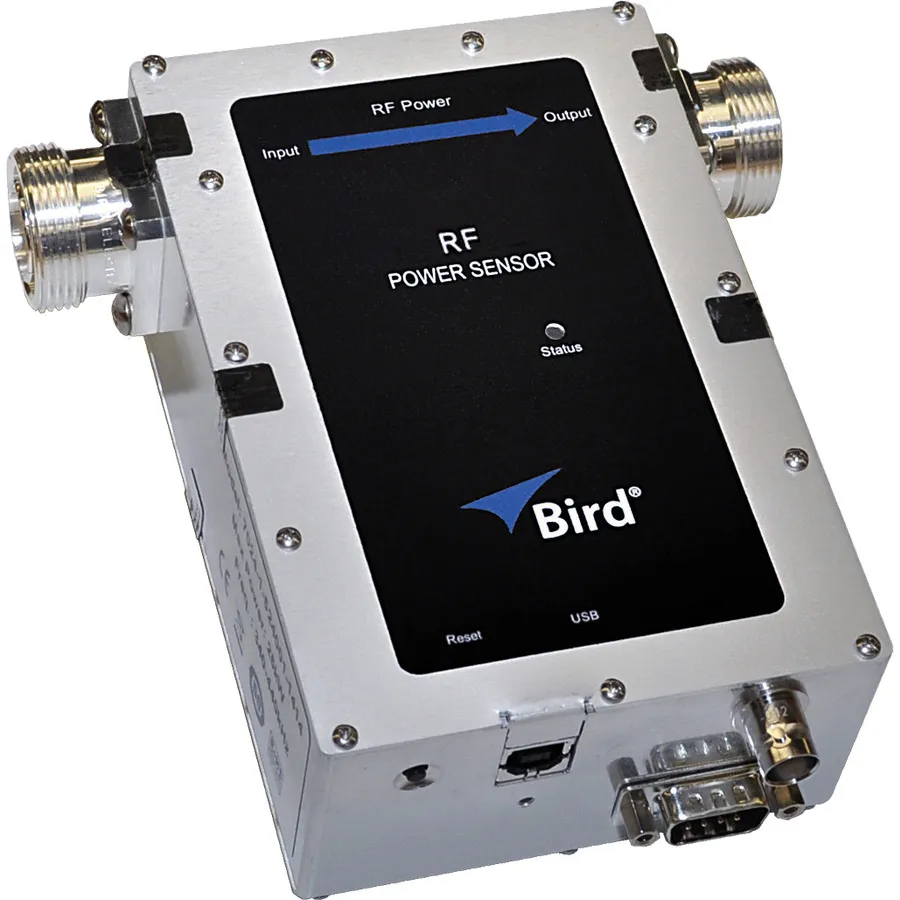

Bird 7027-1-524001-3435 Semiconductor Pulse Sensor
Request a quote
Bird 7027-1-524001-3435 is a semiconductor pulse sensor for RF power measurement with 1% accuracy and NIST traceable calibration, supporting 25 W to 25 kW at 400 kHz.
Product details
| Model | 7027-1-524001-3435 |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 7027-1-524001-3435 is a semiconductor pulse sensor designed for precision RF power measurement in laboratory and production environments. This 7027 Series sensor delivers 1% measurement accuracy across its dynamic range of 25 W to 25 kW at 400 kHz, with NIST traceable calibration for reliable and verifiable results.
Key Features
- Time domain display with gated power measurements (up to four sets of gates)
- NIST traceable calibration with 1% accuracy
- Pulse width measurements down to 1 µs
- Pulse repetition rate measurements from 10 Hz to 100 kHz
- Harmonic filtering and external sync input
- SCPI command set for automation
- RF Interlock protection (optional)
Applications
- Semiconductor manufacturing and testing
- RF power amplifier development and characterization
- Precision pulse measurement in laboratory environments
- Production line power monitoring and control
Specifications
| Connector Type | LC (f-m) |
| Series | 7027 Series |
| Impedance | 50 Ohms |
