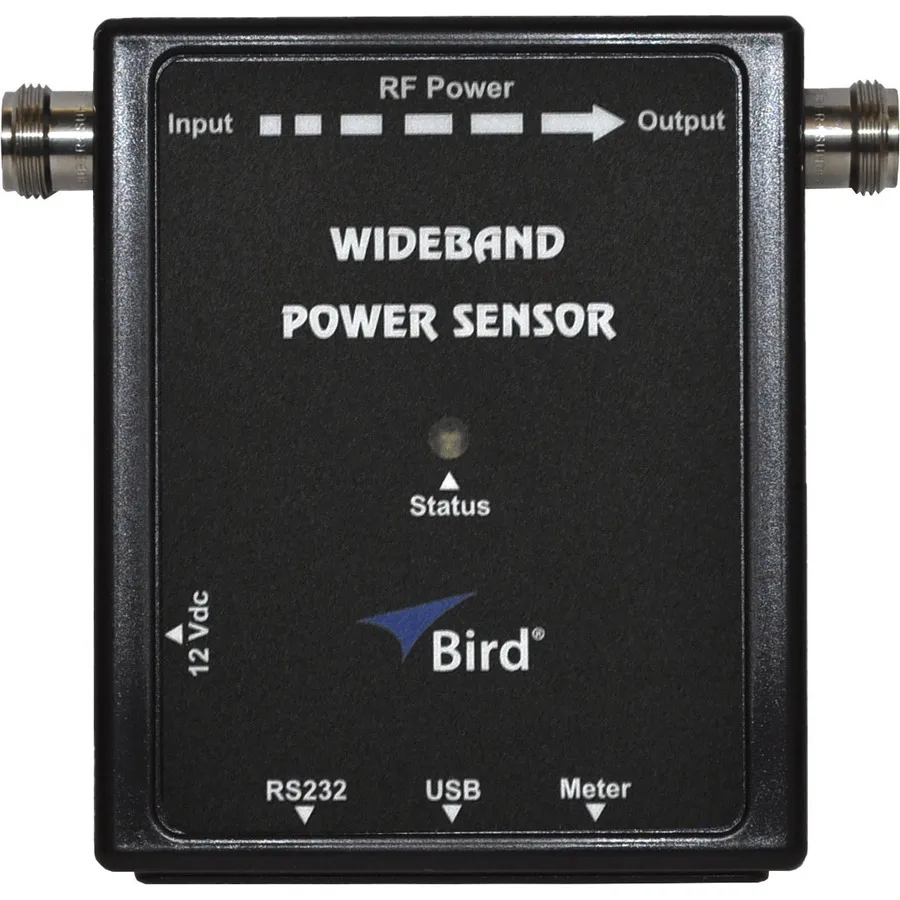

Bird 5018D Wideband Power Sensor
Request a quote
Bird 5018D wideband RF power sensor, 150 MHz–4.0 GHz, 100 mW–25 W average, NIST-traceable annual calibration, no field calibration.
Product details
| Model | 5018D |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 5018D is a wideband RF power sensor designed for measurement from 150 MHz to 4.0 GHz. It measures true average power, peak power, and duty cycle with exceptional accuracy and requires only annual calibration traceable to the National Institute of Standards and Technology (NIST). No field calibration is required, making it ideal for technicians performing in-service measurements and maintenance of high-frequency RF systems.
Key Features
- Frequency range: 150 MHz to 4.0 GHz
- Power range: 100 mW to 25 W average, 60 W peak
- True average, peak power, and duty cycle measurement
- Modulation-independent measurements
- Calculates VSWR, return loss, reflection coefficient, crest factor, and average burst power
- No field calibration required
- NIST-traceable calibration once per year
- USB connectivity for standalone use
- Compatible with 5000-XT meter and other compatible systems
Applications
- In-service monitoring and maintenance of RF systems
- Troubleshooting system failures through forward and reflected power measurement
- High-frequency RF measurement and verification
Included Accessories
- User Manual
- VPM3 Virtual Power Meter Software and Manual
- 10 ft. USB Cable
Specifications
| Series | 5000D Series |
