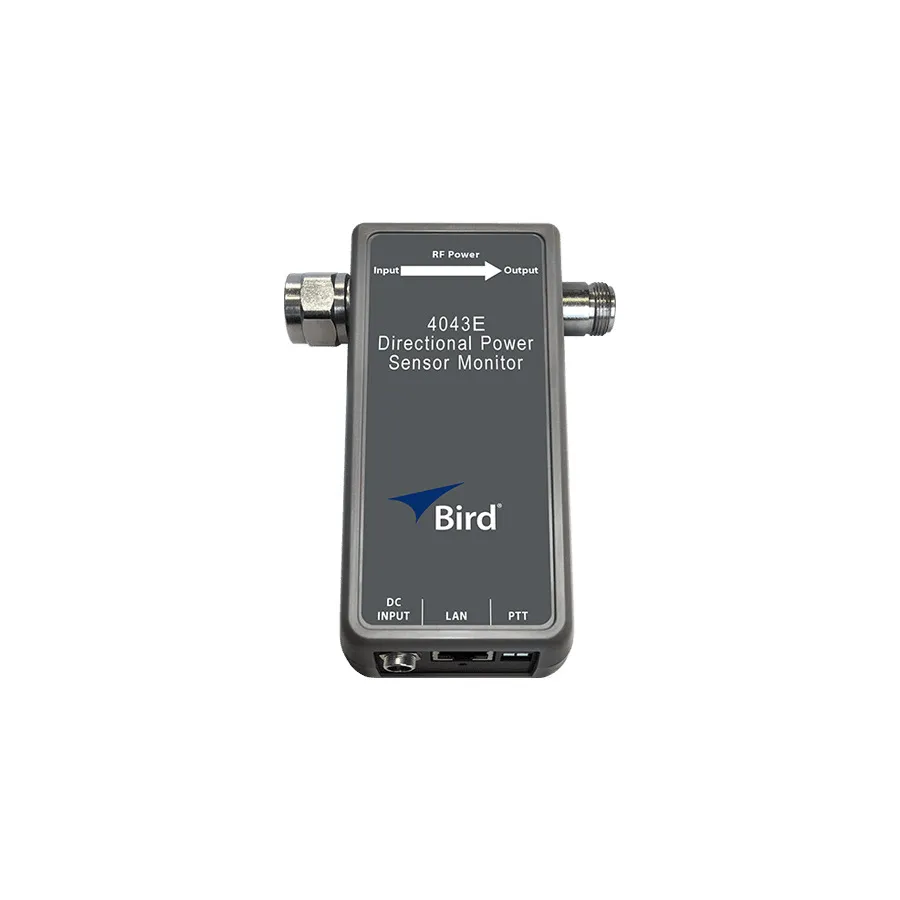

Bird 4043E-1-460503-0201 Channel RF Power Sensor Monitor
Request a quote
Bird 4043E-1-460503-0201 directional RF power sensor for antenna monitoring with VSWR alarms and remote SNMP access in radio communications systems.
Product details
| Model | 4043E-1-460503-0201 |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 4043E-1-460503-0201 is a directional RF power sensor monitor designed for antenna and power monitoring in smaller radio communications systems and paging networks. It connects directly to Internet or private IP networks, enabling remote access for setup and monitoring. Unlike other solutions, the 4043E can monitor antenna VSWR and provide early warning of transmission line degradation from water ingress or damage.
Key Features
- Directional RF power sensor with antenna monitoring
- VSWR monitoring with alarm capabilities for reduced antenna performance
- Pre-configured alarm generation for forward power and minimum/maximum VSWR
- SNMP trap communication for remote alerting
- Composite power monitoring
- Remote setup and monitoring via Internet or IP network
Applications
- Antenna and power monitoring for radio communications systems
- Paging network monitoring
- Transmission line integrity monitoring
- Mission-critical communications uptime maximization
Specifications
| Connector Type | N, Male to Female |
| Frequency Range | 450-512 MHz |
| Type | Power Sensor |
| Series | 4043E Series |
| Certifications | CE, Rohs |
| Dimensions | 5.4 x 3.8 x 1.4" |
| Impedance | 50 Ω |
| Interface | Ethernet 10/100/1000BASE-T |
| Operating Temperature Range | 0-50°C |
| Power | 500 W |
