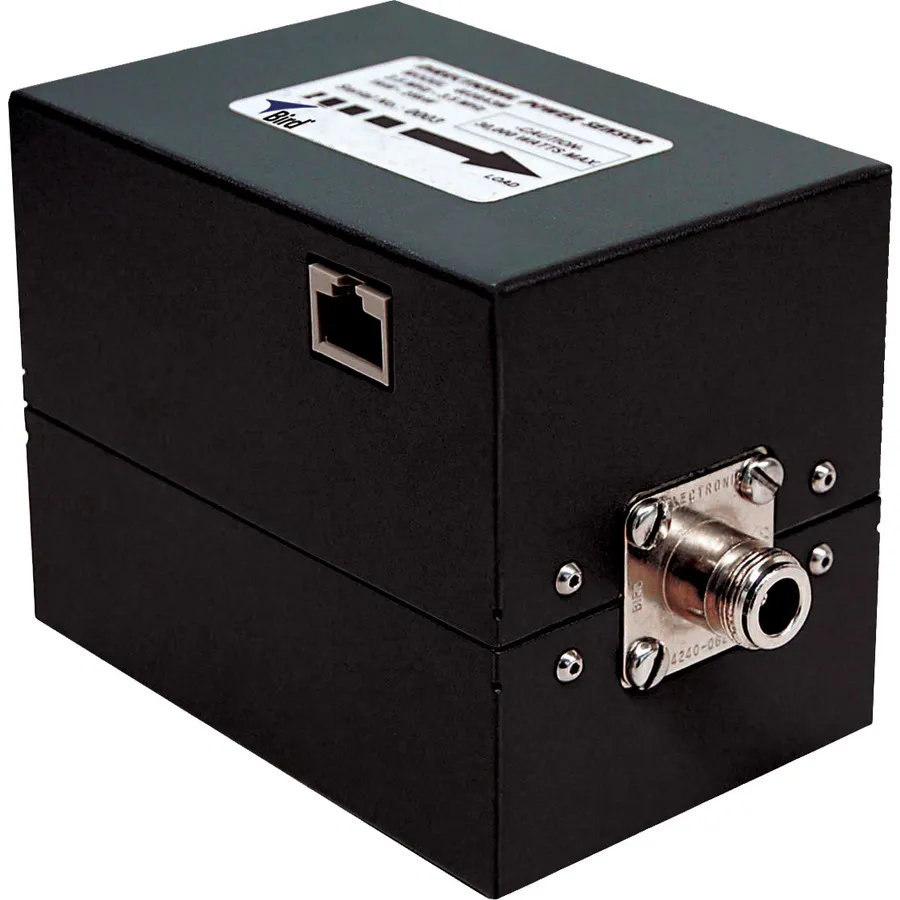

Bird 4028C400K Directional Power Sensor
Request a quote
Bird 4028C400K is a precision RF directional power sensor for 400 kHz with ±2% accuracy, rated for 300 W to 30 kW in high-power processing.
Product details
| Model | 4028C400K |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 4028C400K is an RF directional power sensor designed for high-power applications in LCD, TFT, and solar processing. Featuring ±2% accuracy at the calibrated frequency and power level, this sensor provides reliable measurement for process optimization and yield improvement. The sensor arrives fully calibrated and ready for use, eliminating the need for field calibration.
Key Features
- Directional design for in-line power measurement
- ±2% accuracy at calibrated frequency and power level
- No field calibration required before use
- Calibration traceable to NIST (National Institute of Standards and Technology)
- Plug and play integration with 4421A Series Multifunction Power Meters
- Multiple connector options available
- Annual recalibration recommended
Applications
- High-power LCD processing
- TFT (thin-film transistor) processing
- Solar cell processing
- Precision high-power measurement systems
Compatible Equipment
- 4421A Series Multifunction Power Meters
- SCC8 Calibration Cart
Specifications
| Series | 4028 C Series |
| Interface | Latch-n-Lock |
| Mounting Type | 3 1/8" EIA Flanged |
