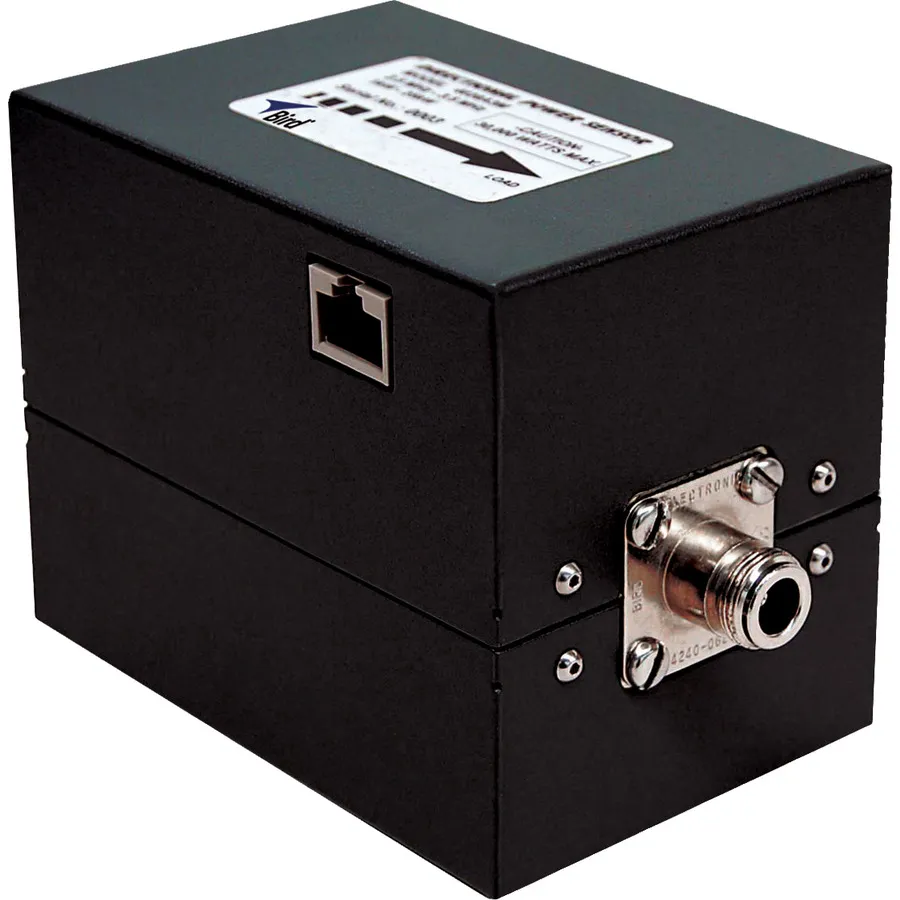

Bird 4028C10M Precision Power Sensor
Request a quote
Bird 4028C10M is a precision RF power sensor for 10-15 MHz with ±2% accuracy, rated for 500 W to 50 kW, supporting high-power processing applications.
Product details
| Model | 4028C10M |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 4028C10M is an RF directional power sensor designed for high-power applications in LCD, TFT, and solar processing. Featuring ±2% accuracy at the calibrated frequency and power level, this sensor provides reliable measurement for process optimization and yield improvement. The sensor arrives fully calibrated and ready for use, eliminating the need for field calibration.
Key Features
- Directional design for in-line power measurement
- ±2% accuracy at calibrated frequency and power level
- No field calibration required before use
- Calibration traceable to NIST (National Institute of Standards and Technology)
- Plug and play integration with 4421A Series Multifunction Power Meters
- Multiple connector options available
- Annual recalibration recommended
Applications
- High-power LCD processing
- TFT (thin-film transistor) processing
- Solar cell processing
- Precision high-power measurement systems
Compatible Equipment
- 4421A Series Multifunction Power Meters
- SCC8 Calibration Cart
Specifications
| Frequency Range | 10 MHz to 15 MHz |
| Series | 4028 C Series |
| Interface | Latch-n-Lock |
| Mounting Type | 3 1/8" EIA Flanged |
