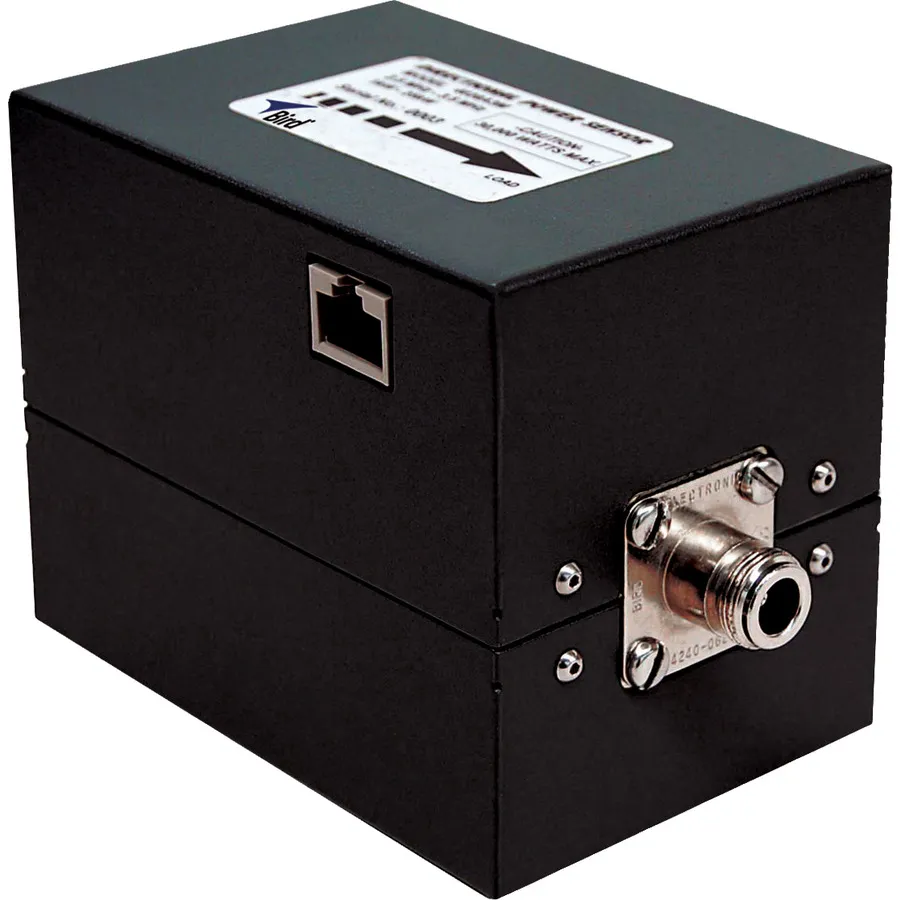

Bird 4028B3M Precision Power Sensor
Request a quote
Bird 4028B3M RF power sensor for 25-4 MHz with ±2% accuracy, measuring 1 kW to 25 kW for high-power LCD, TFT, and solar processing.
Product details
| Model | 4028B3M |
| Manufacturer | Bird |
| Category | RF Power Sensors |
| Availability | Made to order |
Description
Overview
The Bird 4028B3M is a precision RF directional power sensor designed for high-power applications in the 25-4 MHz frequency range. With power measurement capability from 1 kW to 25 kW and ±2% accuracy at calibrated frequencies and power levels, this sensor enables precise measurement and process control for LCD, TFT, and solar processing applications.
Key Features
- ±2% accuracy at specified frequencies and power levels
- Frequency range: 25-4 MHz
- Power range: 1 kW to 25 kW
- No field calibration required before initial use; annual calibration only
- Plug and Play compatible with 4421A Series Multifunction Power Meter
- Multiple connector options available
- NIST traceable calibration for measurement confidence
Applications
- High-power LCD and TFT processing
- Solar processing applications
- Precision high-power RF measurement
- Production yield monitoring and control
Specifications
| Frequency Range | 25 MHz to 4 MHz |
| Series | 4028 B Series |
| Interface | Latch-n-Lock |
| Mounting Type | 1 5/8" EIA Flanged |
