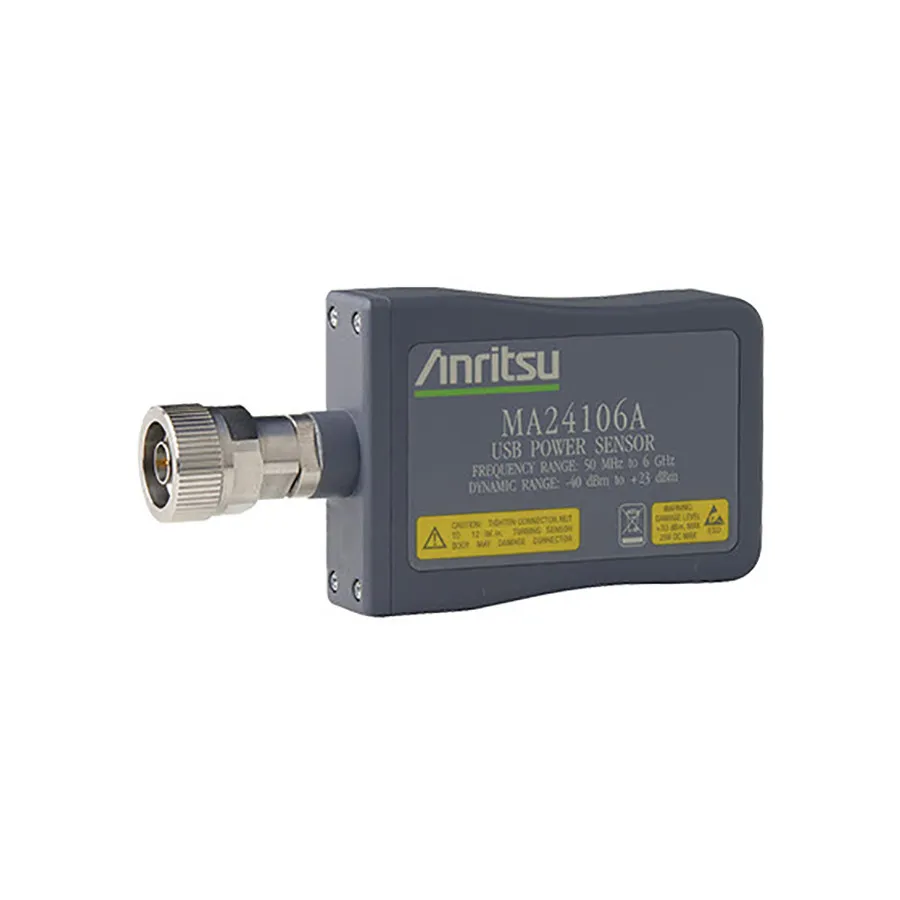

Anritsu MA24106A USB Power Sensor

Overview

The Anritsu MA24106A is a USB power sensor that provides accurate average power measurements from 50 MHz to 6 GHz using True-RMS detection technology. Designed as a standalone alternative to traditional thermal power meters, it features a 63 dB dynamic range and is ideal for measuring CW and modulated RF waveforms including 3G, 4G, OFDM, and multi-tone signals. The sensor includes a built-in micro-controller with signal conditioning, ADC, and power supply, functioning as a complete miniature power meter with data display and analysis on the PC.

Key Features

• Frequency range: 50 MHz to 6 GHz
• True-RMS detection with 63 dB dynamic range
• Measurement range: -40 to +23 dBm
• USB connectivity to PC (Microsoft Windows compatible)
• On-board frequency and temperature corrections
• Low current consumption (100 mA) for laptop battery preservation
• High damage power levels and ESD protection
• Compatible with PowerXpert, Spectrum Master, VNA Master, and other Anritsu instruments
• One year calibration cycle with worldwide service centers

Applications

• Base station installation and maintenance
• 3G and 4G product testing
• Cell phone and general purpose RF device testing
• OFDM and multi-tone signal measurement
• Production testing with reduced handling time

Included Accessories

• 10585-00021 Quick Start Guide
• 2000-1605-R 1.5 m BNC (m) to MCX (m) cable
• 2000-1606-R 1.8 m USB A to Micro-B cable with latch
