TekBox TBMDA4B Modulated Wideband Power Amplifier
Request a quote

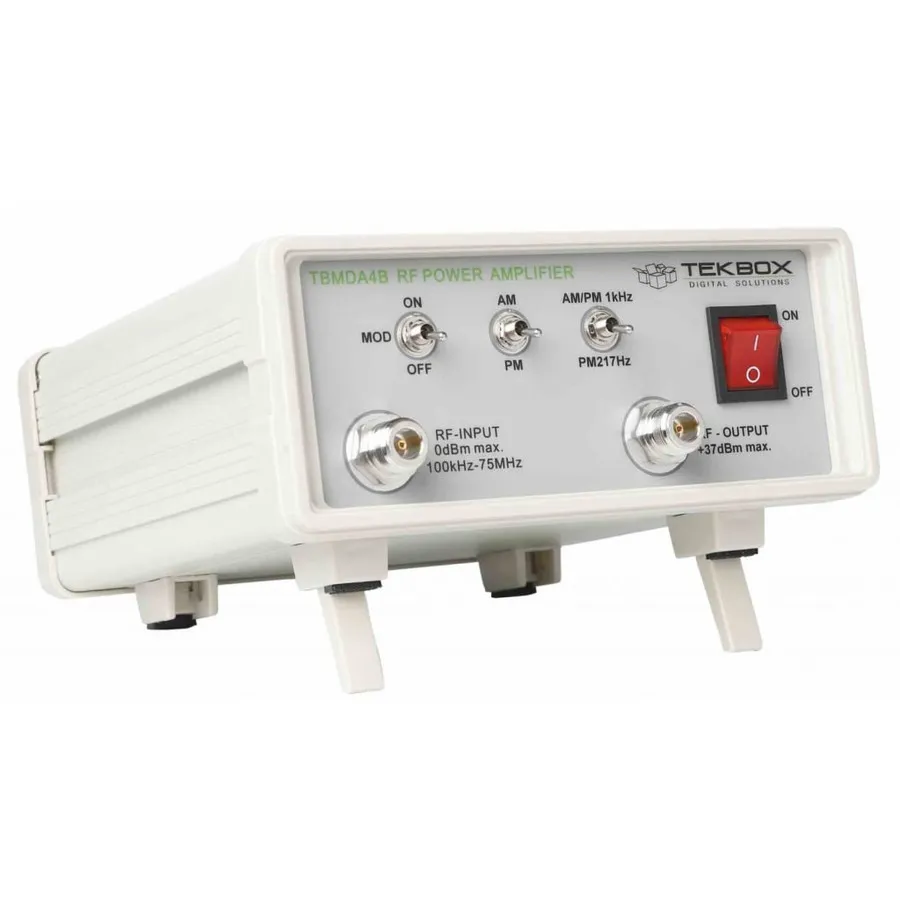

TekBox TBMDA4B is a modulated wideband power amplifier (100 kHz – 75 MHz) with AM/PM modulation for immunity testing, generating up to 5W output.
Product details
| Model | TBMDA4B |
| Manufacturer | TekBox |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The TekBox TBMDA4B is a modulated wideband power amplifier designed to create an inexpensive signal source for immunity testing of electronic building blocks and products. It covers the frequency range from 100 kHz to 75 MHz and can boost the output power of a tracking generator up to 5W. It is an ideal complement to the TBMDA3, which covers 10 MHz to 1 GHz.
Key Features
- Frequency range: 100 kHz – 75 MHz
- Input power range: -20 dBm to -10 dBm
- Output power: up to 5W
- CW amplifier (modulation off)
- 1 kHz, 80% AM modulation
- 1 kHz, 50% duty cycle pulse modulation
- 217 Hz, 12.5% duty cycle pulse modulation for mobile phone TDMA noise simulation
Applications
- General-purpose power amplifier for immunity testing
- Signal source for immunity testing driven by tracking generator output of spectrum analyzers
- Driving near field probes to find sensitive spots in electronic circuits
- Creating electric fields up to 550V/m when driving Tekbox TEM Cell TBTC0; 300V/m with TBTC1; 150V/m with TBTC2; 100V/m with TBTC3
Included Accessories
- 2× 75cm N-male to N-male cables
- 30dB / 10W Attenuator with N-connectors
- US power cord
Specifications
| Amplifier Type | Wideband Modulated |
| Maximum Frequency | 70 MHz |
| Minimum Frequency | 100 kHz |
| Series | TBMDA Series |
| Includes | Modulated power amplifier, (2) 75cm N(m-m) cables, 30dB / 10W Attenuator with N-connectors, US power cord |
