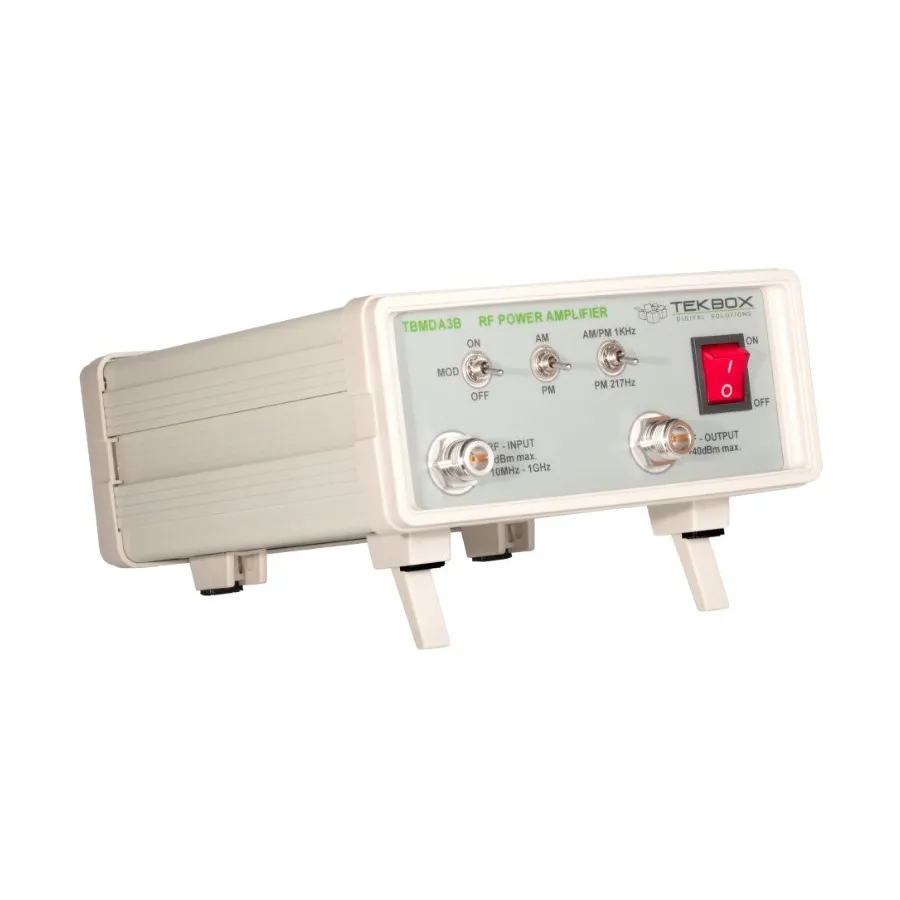

TekBox TBMDA3B Modulated Wideband Power Amplifier

Overview

The TBMDA3B is a low-cost modulated wideband power amplifier designed to provide an RF power source for pre-compliance immunity testing of electronic building blocks and products. Operating from 10 MHz to 1 GHz, it delivers up to 8W saturated output power when driven with an input power of less than 0 dBm. The amplifier is ideal for driving TekBox near field probes or generating strong electric fields for radiated immunity testing in TEM cells.

Key Features

• Frequency range: 10 MHz to 1 GHz (usable from 5 MHz to 1.1 GHz)
• Small signal gain: 42.5 dB typical
• Saturated output power: up to 8W
• Gain flatness: 2.5 dB typical
• Input/Output impedance: 50 Ohm N female connectors
• Built-in AM modulation at 1 kHz, 80%
• Pulse modulation: 50% duty cycle at 1 kHz
• TDMA simulation: 217 Hz, 12.5% duty cycle
• Supply voltage: 110V to 240V
• Power consumption: 25W at 220V
• Operating temperature: -20°C to 50°C

Applications

• Pre-compliance immunity testing for electronic products
• Wideband RF power amplifier for conducted immunity testing with CDNs or BCI probes
• Radiated immunity testing with near field probes
• Radiated immunity testing with TEM cells
• Electric field generation up to 700V/m with TBTC0, 400V/m with TBTC1, 200V/m with TBTC2, or 130V/m with TBTC3

Included Accessories

• Modulated power amplifier
• 2x 75cm N-male to N-male cables
• 6 dB attenuator
• 30 dB / 10W attenuator with N-connectors
• Power cord
