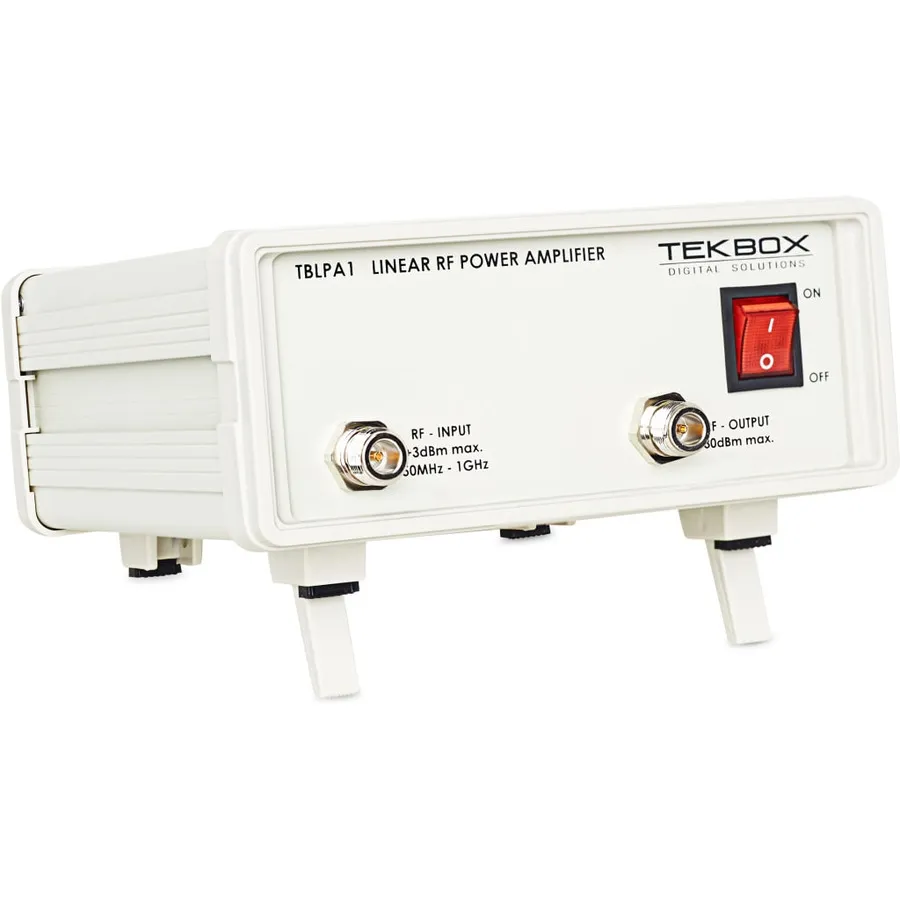

TekBox TBLPA1 Linear Wideband RF Power Amplifier
Request a quote
Linear wideband RF power amplifier for 50 MHz to 1 GHz with 1W output power, 50 Ohm impedance, and general-purpose test and measurement applications.
Product details
| Model | TBLPA1 |
| Manufacturer | TekBox |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The TBLPA1 is a linear wideband RF power amplifier designed for general-purpose test and measurement applications. It operates across the frequency range of 50 MHz to 1 GHz with an output power capability of up to 1W and can be used with reduced output power capability even beyond 1 GHz.
Key Features
- Frequency range: 50 MHz to 1 GHz (usable beyond with reduced power)
- Output power: up to 1W
- Input/Output impedance: 50 Ohm
- Input/Output connector: N-female
- Supply voltage: 110V to 240V AC
- Power consumption: 15W
Applications
- Test and measurement amplification
- EMC testing applications
- RF circuit testing and validation
Safety
Never connect the output directly to a spectrum analyzer input without protection. Verify the spectrum analyzer's maximum input rating and use an appropriate attenuator. Avoid open or shorted loads as they may damage the amplifier.
Specifications
| Amplifier Type | Wideband Linear |
| Maximum Frequency | 1 GHz |
| Minimum Frequency | 50 MHz |
