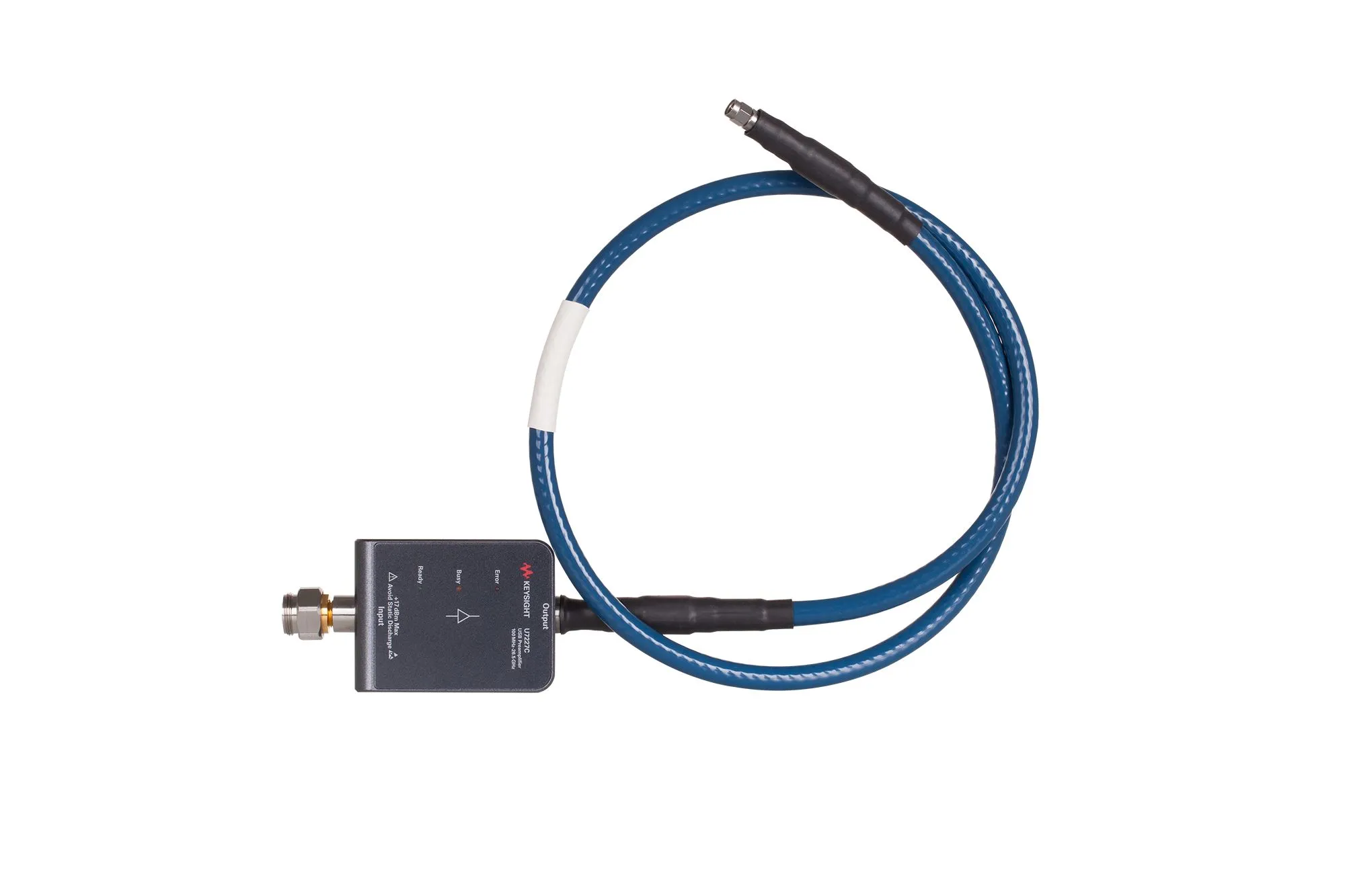

Keysight U7227C USB Preamplifier
Request a quote
Keysight U7227C is a 100 MHz to 26.5 GHz USB preamplifier with <6 dB noise figure, automatic gain compensation, and plug-and-play calibration for X-Series analyzers.
Product details
| Model | U7227C |
| Manufacturer | Keysight |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The Keysight U7227C is a 100 MHz to 26.5 GHz USB preamplifier designed to deliver reliable gain and low noise figure for ultra-broadband RF measurement systems. It integrates with X-Series signal analyzers to provide accurate noise figure measurements and automatic calibration for improved measurement repeatability.
Key Features
- Frequency range: 100 MHz to 26.5 GHz
- Noise figure: <6 dB (100 MHz to 4 GHz), <5 dB (4 to 6 GHz), <4 dB (6 to 18 GHz), <5 dB (18 to 26.5 GHz)
- Gain: >16.1 + 0.26F dB (100 MHz to 26.5 GHz)
- Input return loss >15 dB (100 MHz to 4 GHz), >8 dB (4 to 26.5 GHz)
- Output return loss >18 dB (100 MHz to 4 GHz), >11 dB (4 to 26.5 GHz)
- Automatic temperature-compensated gain and calibration data transfer
- USB plug-and-play connectivity with S-parameters and noise figure data
- Rugged design for bench and field measurements
Applications
- Broadband noise figure measurements with X-Series signal analyzers
- Ultra-wideband RF system characterization
- Millimeter-wave measurement applications
- High-frequency front-end signal analysis
Included Accessories
- 3.5 mm (f) to Type-N (m) adapter
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 10MHz <= 100MHz |
| Amplifier Type | Pre-Amplifier |
| Maximum Frequency | 26.5 GHz |
| Minimum Frequency | 100 MHz |
| Connector Type | 3.5mm(m) |
| Series | U7227/8x Series |
