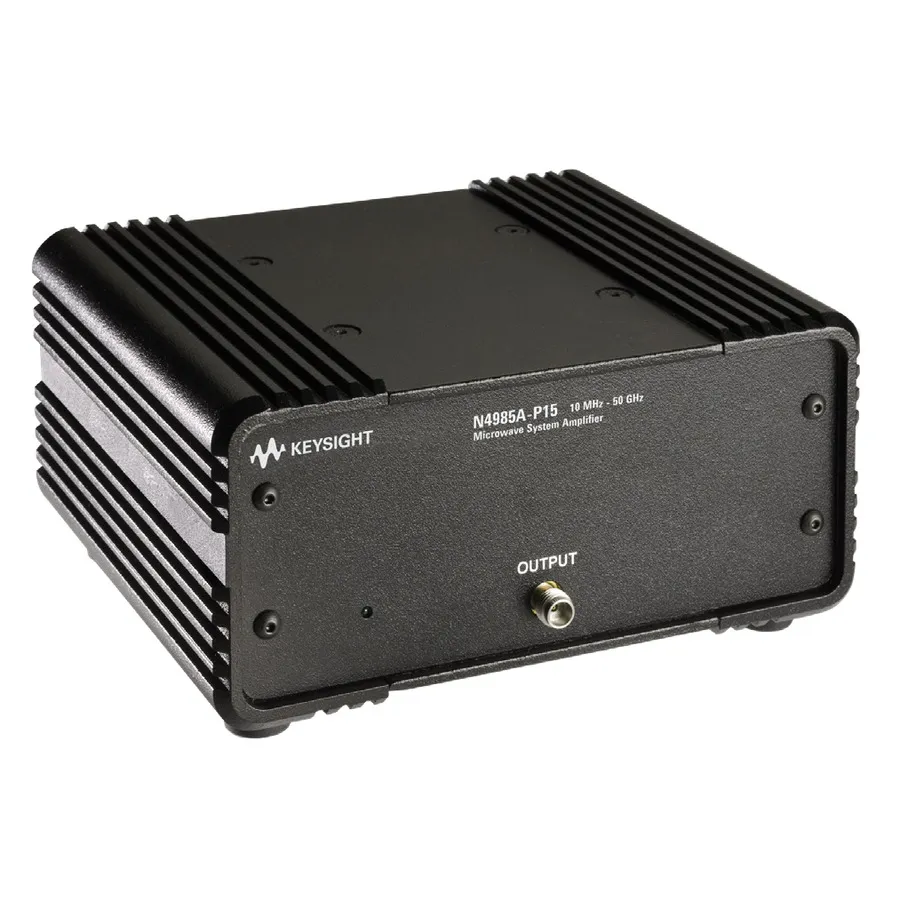

Keysight N4985A/P15 System Amplifier
Request a quote
Keysight N4985A/P15 is a high-performance broadband RF amplifier covering 10 MHz to 50 GHz with approximately 22 dBm output power, ideal for lab and test applications.
Product details
| Model | N4985A/P15 |
| Manufacturer | Keysight |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The Keysight N4985A/P15 is a high-performance broadband system amplifier designed for lab and test applications. It operates from 10 MHz to 50 GHz and combines excellent gain with typically 22 dBm output power at 50 GHz. The amplifier is self-contained with a standard AC power supply, making it easy to integrate into existing test setups.
Key Features
- Frequency range: 10 MHz to 50 GHz
- High gain broadband performance
- Approximately 22 dBm output power at 50 GHz
- Self-contained unit with AC power supply
- Excellent for overcoming cable losses and providing additional drive power
Applications
- Saturated RF amplifier testing
- Driving TWT (Traveling Wave Tube) amplifiers
- Antenna system amplification
- General broadband power and gain applications
Specifications
| Amplifier Type | System |
| Maximum Frequency | 50 GHz |
| Minimum Frequency | 10 MHz |
| Connector Type | 2.4mm |
| Series | N4985A Series |
