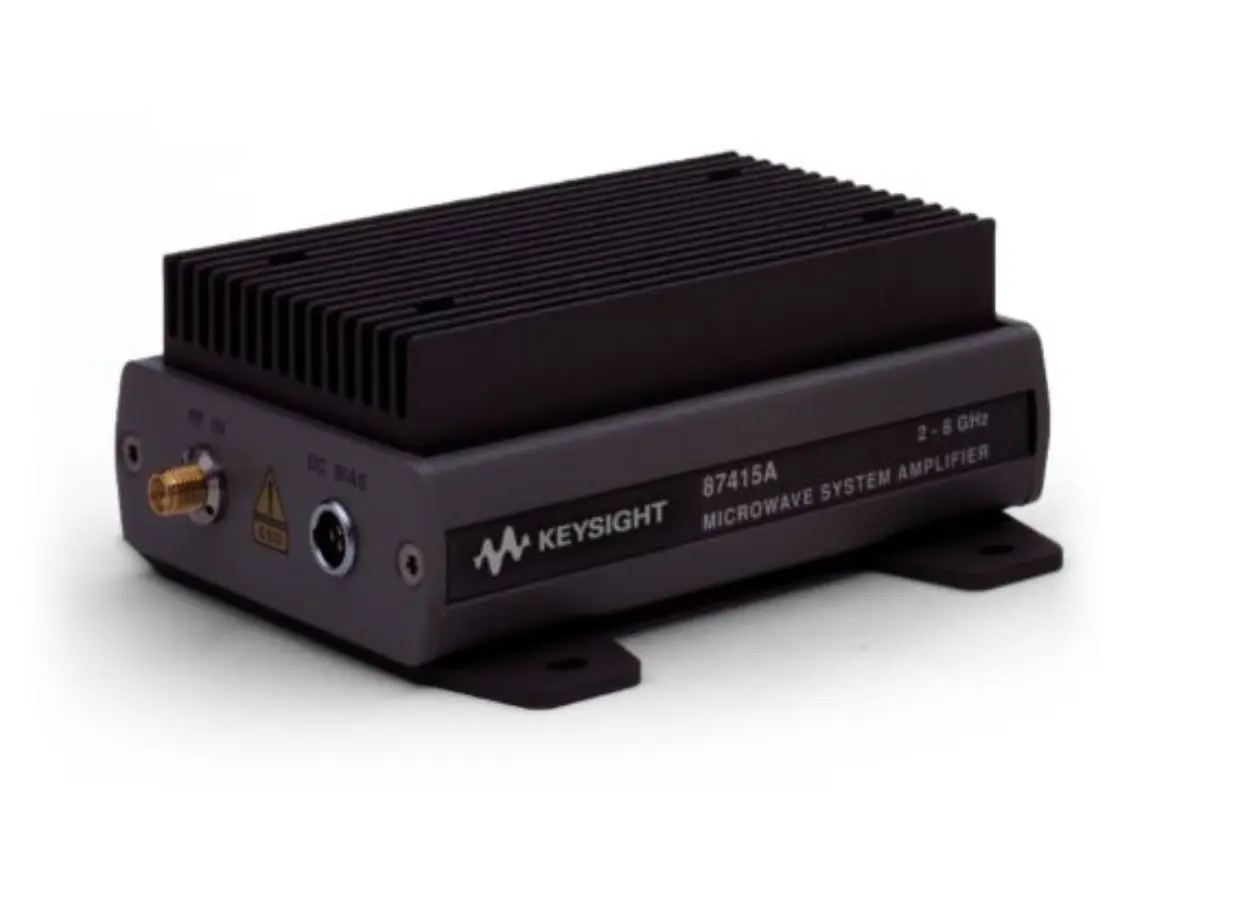

Keysight 87415A Microwave System Amplifier
Request a quote
Keysight 87415A is a compact microwave amplifier for 2–8 GHz with 25 dB gain, 23 dBm output power, and 13 dB noise figure.
Product details
| Model | 87415A |
| Manufacturer | Keysight |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The Keysight 87415A is a compact, high-performance microwave amplifier engineered for demanding RF and microwave applications. Operating from 2 to 8 GHz, it delivers 25 dB of gain and up to 23 dBm of output power. Its GaAs MMIC design, internal bias regulation, and integrated heat sinking provide long-term stability and dependable operation in test system environments.
Key Features
- Frequency range: 2 to 8 GHz
- Gain: 25+ dB
- Output power (P1dB): 23+ dBm
- Noise figure: 13 dB (typical)
- Saturated output: 26+ dBm
- Reverse isolation: 60 dB
- RF connectors: 2.4mm (f)
- Bias requirement: +12V at 900 mA
Applications
- Loss compensation in RF systems
- Preamplification for sensitive instruments
- Gain staging in microwave systems
- Test labs and automated test equipment
- Antenna subsystems and production environments
Included Accessories
- Cable 83006-60004
Specifications
| Output Power | +24dBm |
| Gain | 25dB |
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1GHz <= 10GHz |
| Connector Type | Type N-Female (Plug) |
| Amplifier Type | Microwave System Amplifier |
| Maximum Frequency | 8 GHz |
| Minimum Frequency | 2 GHz |
| Connector Type | SMA (f) |
