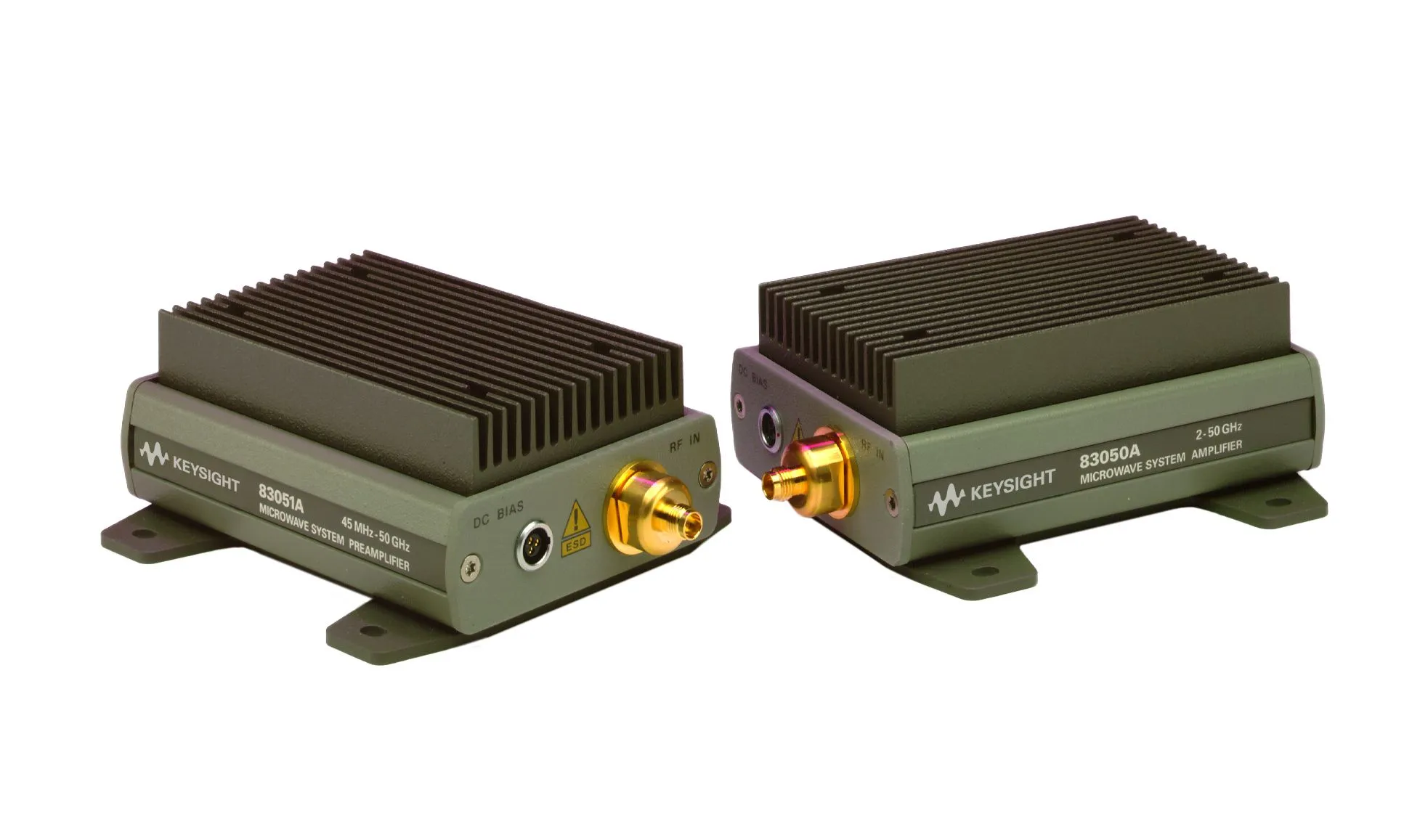

Keysight 83051A Microwave System Amplifier
Request a quote
Keysight 83051A microwave system amplifier with ultrabroad bandwidth from 45 MHz to 50 GHz, gain greater than 23 dB, and compact module design.
Product details
| Model | 83051A |
| Manufacturer | Keysight |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The Keysight 83051A is a microwave system amplifier designed for systems designers and integrators. With an ultrabroad bandwidth spanning 45 MHz to 50 GHz, this compact amplifier eliminates the need for multiple narrow-bandwidth amplifiers and crossover networks, making it ideal for RF and microwave ATE (Automated Test Equipment) systems.
Key Features
- Frequency range: 45 MHz to 50 GHz
- Gain: more than 23 dB
- P1dB: more than 8 dBm (to 45 GHz), 6 dBm (to 50 GHz)
- Noise figure: less than 12 dB to 2 GHz, 6 dB to 26.5 GHz, 10 dB to 50 GHz
- RF connectors: 2.4 mm (f)
- DC detector output connector: BNC (f)
- Bias: +12V @ 425 mA, -12V @ 50 mA
Applications
- RF and microwave ATE systems
- System loss recovery and power boosting
- Broadband amplification for test and measurement
Specifications
| Output Power | +16dBm |
| Gain | 23dB |
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 10MHz <= 100MHz |
| Amplifier Type | System |
| Maximum Frequency | 50 GHz |
| Minimum Frequency | 45 MHz |
| Series | 83000A Series |
| Number of Channels | 1 |
