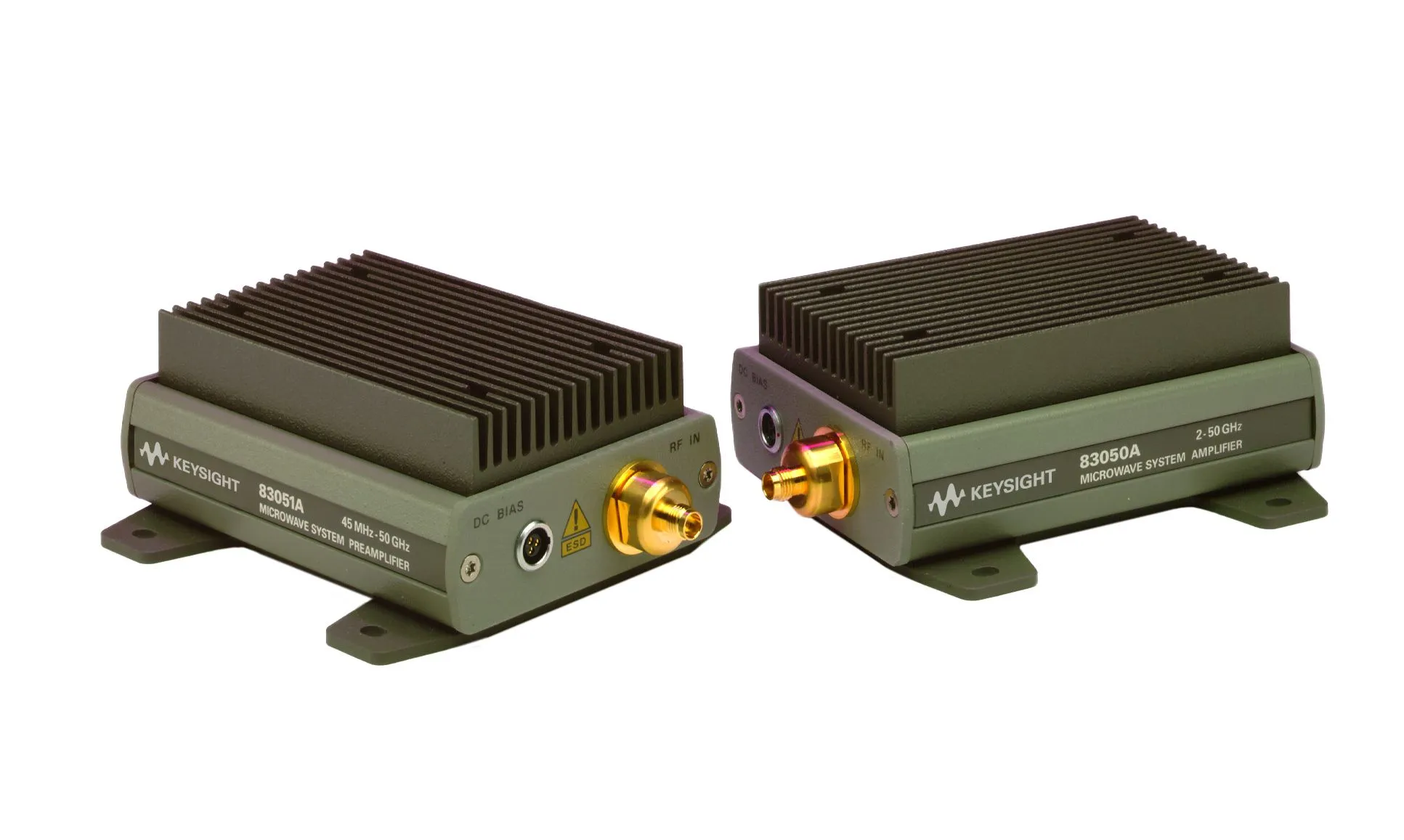

Keysight 83050A Microwave System Amplifier
Request a quote
Keysight 83050A is an ultra-broadband microwave system amplifier with 2 to 50 GHz coverage, 21+ dB gain, and 18 dBm output power for RF/ATE systems.
Product details
| Model | 83050A |
| Manufacturer | Keysight |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The Keysight 83050A is a compact, off-the-shelf microwave system amplifier designed for systems engineers and integrators. It provides power recovery for system losses and signal boost in RF and microwave ATE systems. The ultra-broadband design from 2 to 50 GHz enables a single amplifier to replace several narrow-bandwidth units, eliminating the need for crossover networks and multiple bias supplies.
Key Features
- Frequency range: 2 to 50 GHz
- Gain of more than 21 dB
- P1dB of more than 15 dBm to 40 GHz, 13 dBm to 50 GHz
- Noise figure less than 6 dB to 26.5 GHz, 10 dB to 50 GHz (typical)
- 2.4mm RF connectors and BNC DC detector output
- Bias supply: +12V @ 830 mA, -12V @ 50 mA
Applications
- RF and microwave automatic test equipment (ATE)
- System loss recovery and signal boosting
- Broadband signal amplification
- Extended frequency range applications
Specifications
| Output Power | +13dBm |
| Gain | 21dB |
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1GHz <= 10GHz |
| Connector Type | Type N-Female (Plug) |
| Amplifier Type | System |
| Maximum Frequency | 50 GHz |
| Minimum Frequency | 2 GHz |
| Connector Type | 2.4mm(f) |
| Series | 83000A Series |
