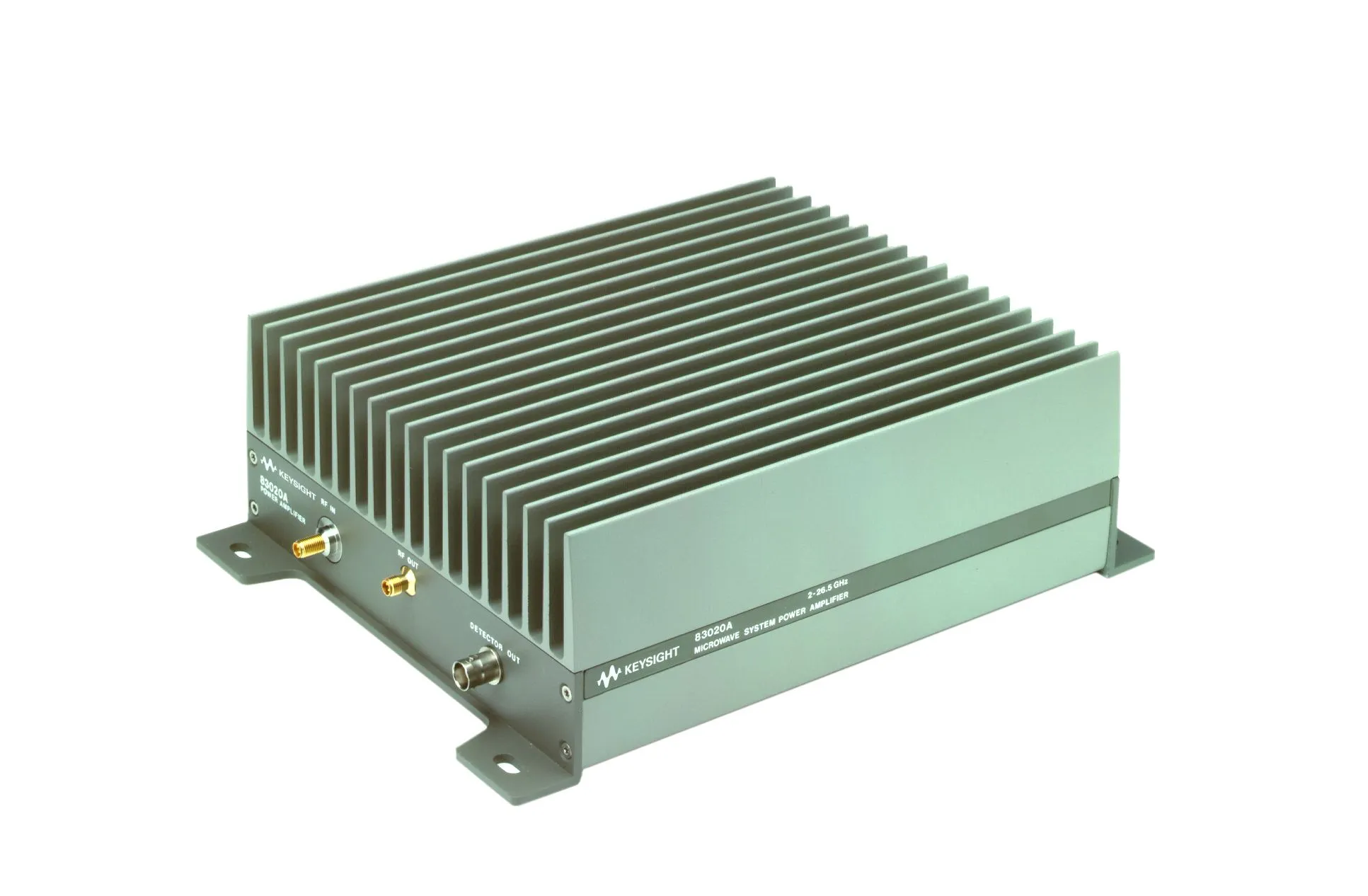

Keysight 83020A Microwave System Amplifier
Request a quote
Keysight 83020A is a broadband microwave system amplifier with 2 to 26.5 GHz bandwidth, 30+ dB gain, and 30 dBm output power for RF systems.
Product details
| Model | 83020A |
| Manufacturer | Keysight |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The Keysight 83020A is a compact, off-the-shelf microwave system amplifier designed for systems designers and integrators. It provides power where needed to recover system losses and boost available power in RF and microwave ATE systems. The ultrabroad bandwidth from 2 to 26.5 GHz allows replacement of several narrow bandwidth amplifiers with a single unit, eliminating the need for crossover networks or multiple bias supplies.
Key Features
- Gain of more than 30 dB to 20 GHz, 27 dB to 26.5 GHz
- P1dB of more than 27 dBm to 20 GHz, 23 dBm to 26.5 GHz
- Noise figure less than 10 dB to 20 GHz, 13 dB to 26.5 GHz (typical)
- 3.5mm RF connectors and BNC DC detector output
- Bias supply: +15V @ 3.2A, -15V @ 50 mA
Applications
- RF and microwave automatic test equipment (ATE)
- Broadband signal amplification
- System loss recovery and power boosting
Included Accessories
- 87421A Power Supply (12/15 VDC, 25 W)
- 87422A Power Supply (12/15 VDC, 70 W)
Specifications
| Output Power | +28dBm |
| Gain | 27dB |
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1GHz <= 10GHz |
| Amplifier Type | System |
| Maximum Frequency | 26.5 GHz |
| Minimum Frequency | 2 GHz |
| Series | 83000A Series |
